Amosolar Co.,Ltd ---- Professional Solar Manufacturer
270W 275W 280W 285W 290W 295W Poly Solar Panel China Factory
Products
Home / SOLAR PANEL / Small PV Module / Poly 157mm /

270W 275W 280W 285W 290W 295W Poly Solar Panel China Factory

Solar PV Module
Solar PV Module
Solar PV Module
Solar PV Module

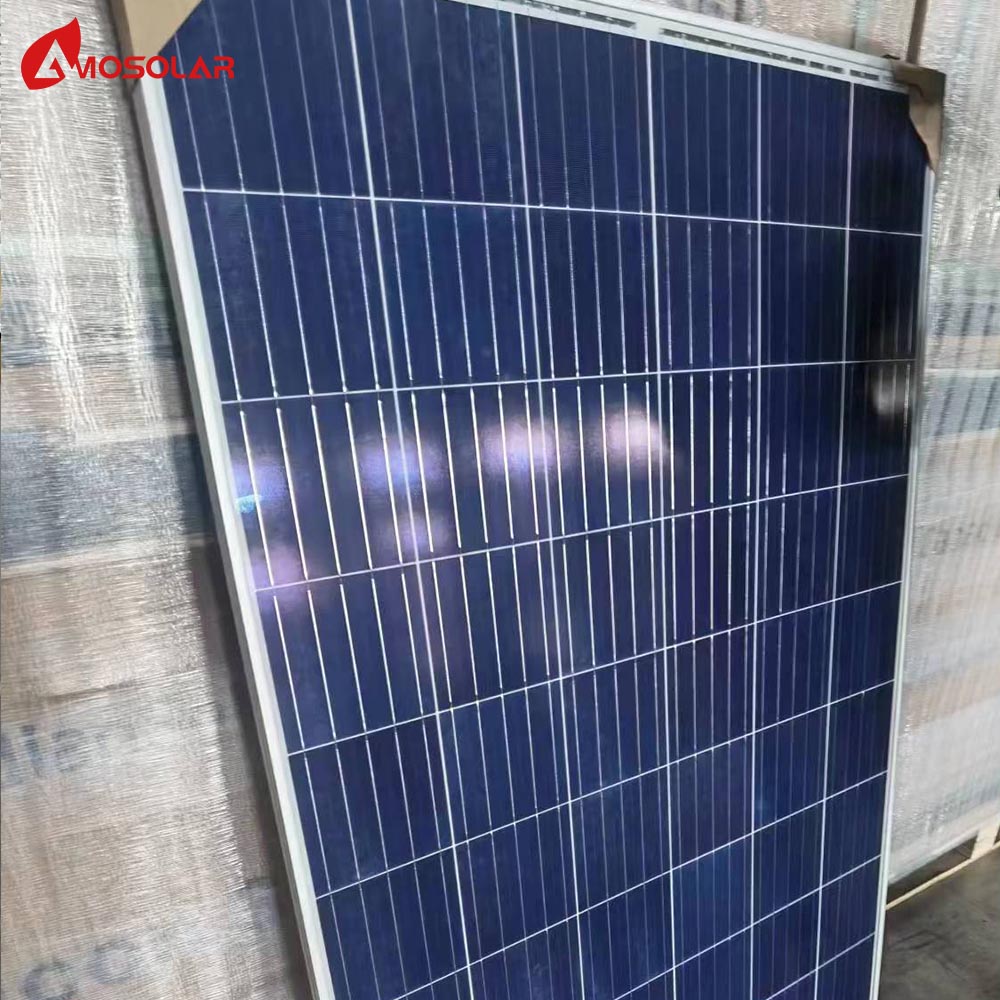

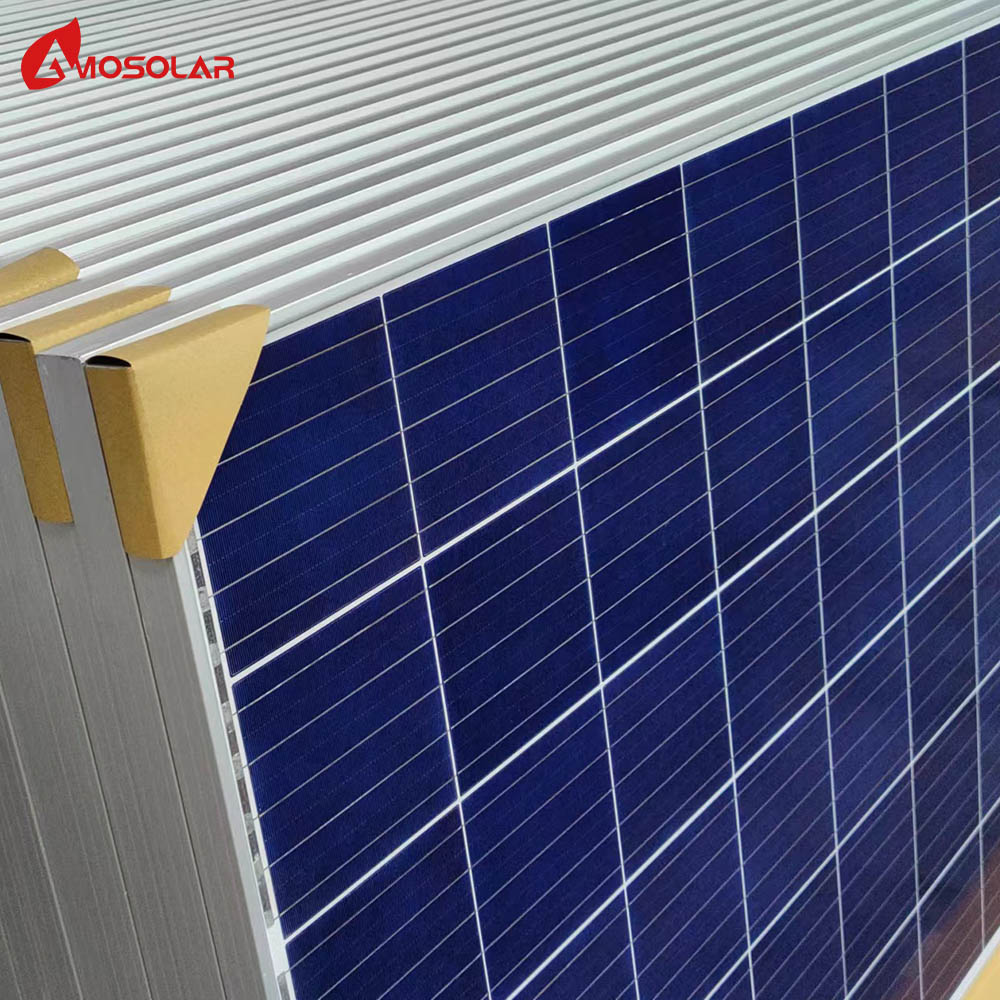

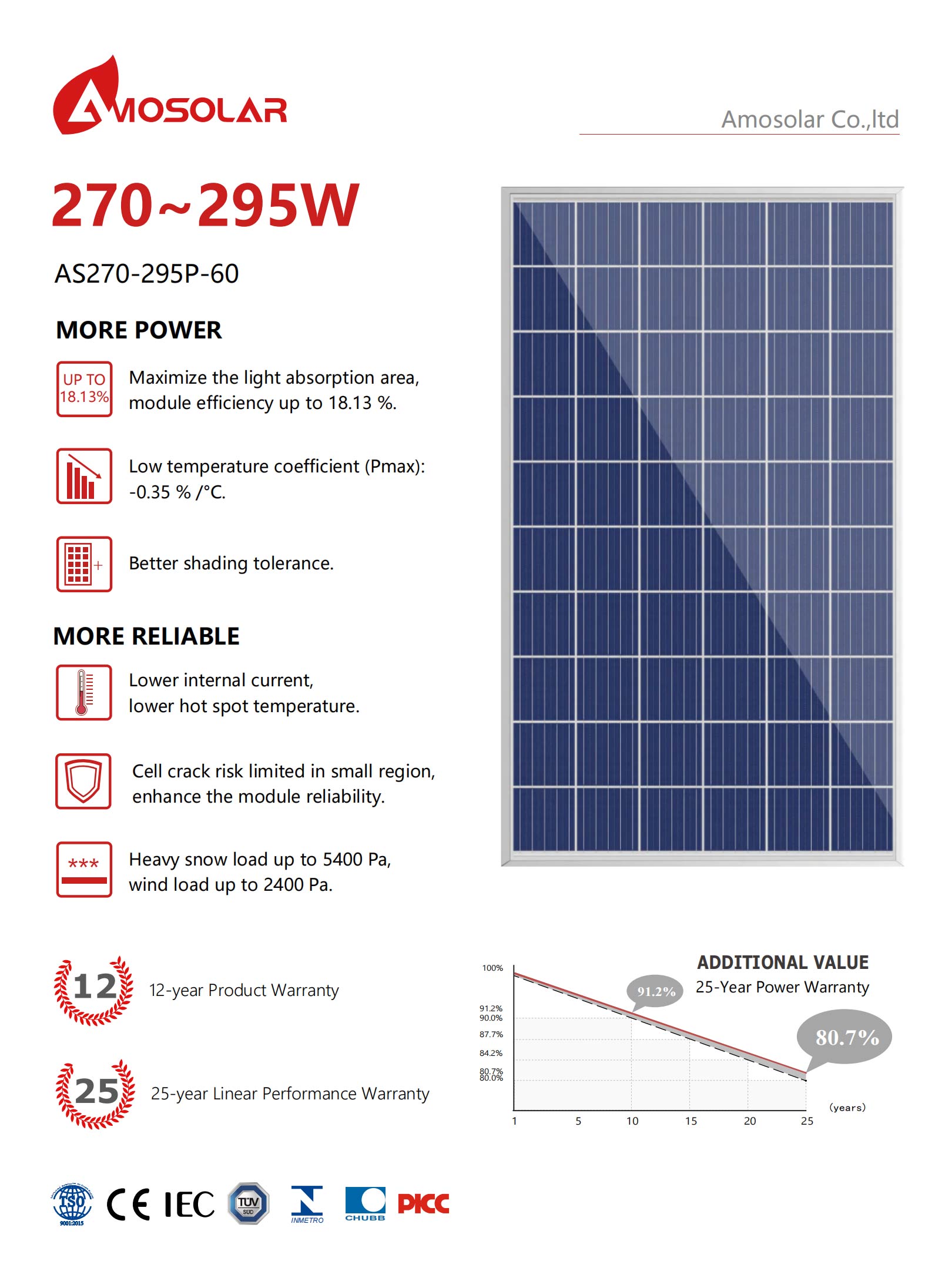

270W 275W 280W 285W 290W 295W Poly Solar Panel China Factory

AS270-295P-60

Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price.

Cell Poly
Rated Maximum Power
295W
Maximum Efficiency 18.13%
Weight
17.0kgs±3%
Cells Type
Poly-crystalline 156.75x156.75mm
Dimension (LxW×T)
1640±2mmx992±2mmx30±1mm
Packaging
36pcs/pallet,1078pcs/40HQ container

270W-295W Full Cell Polycrystalline PV Panel Chinese Manufactory : The Grade A solar cell ensures higher power output and maximum pv module perfomance.

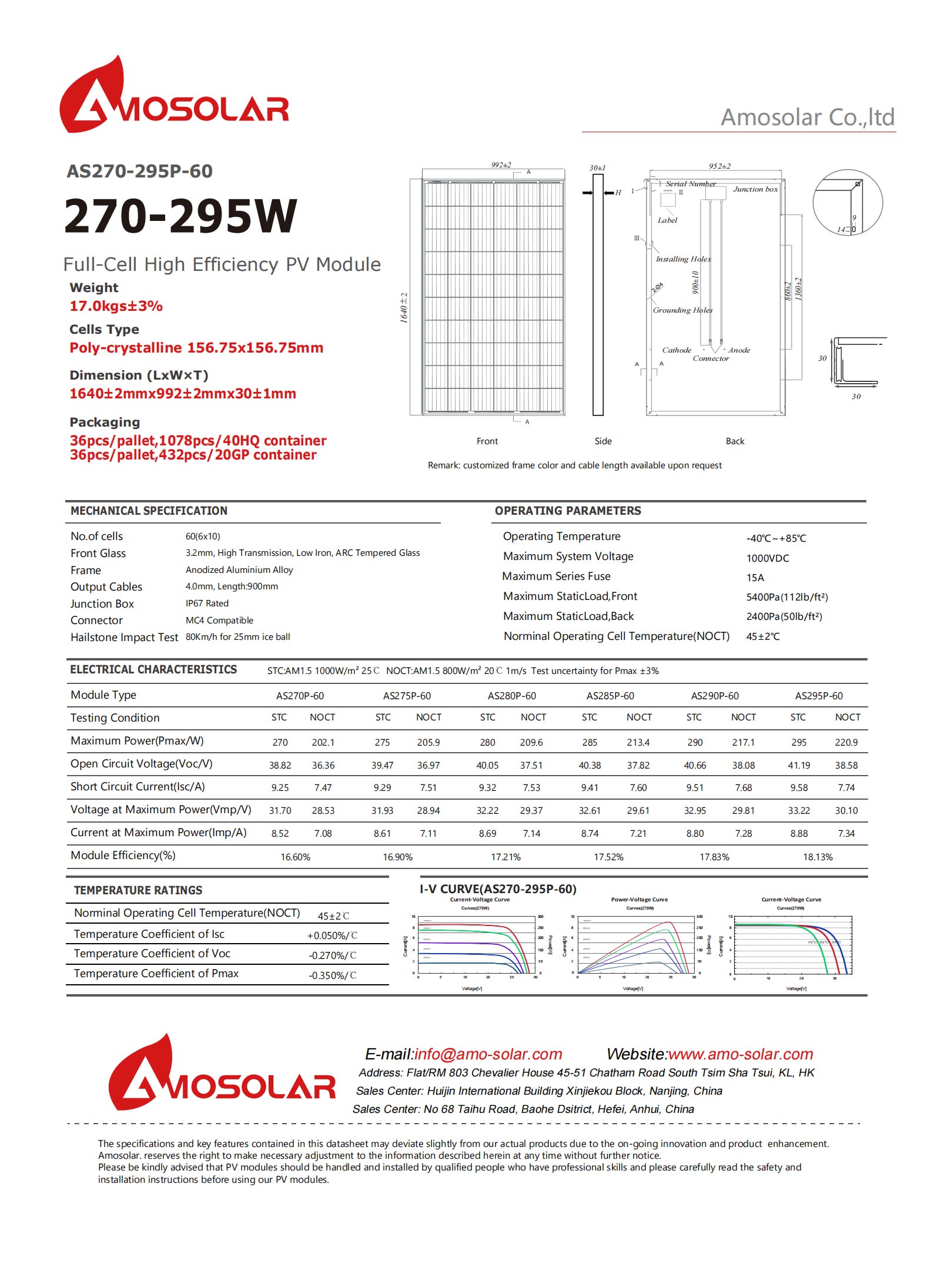

Electrical Performance Parameters (STC Test)


Model
AS270P-60

AS275P-60

AS280P-60
AS285P-60
AS290P-60
AS295P-60
Rated Maximum Power at STC 270W
275W 280W 285W 290W 295W
Open Circuit Voltage (Voc) 38.82 39.47 40.05 40.38 40.66 41.19
Maximum Power Voltage (Vmp) 31.70 31.93 32.22 32.61 32.95 33.22
Short Circuit Current (Isc) 9.25 9.29 9.32 9.41 9.51 9.58
Maximum Power Current (Imp)

8.52

8.61 8.69 8.74 8.8 8.88
PV Module Efficiency (%) 16.60 16.90 17.21 17.52 17.83 18.13
Standard Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5



Mechanical Parameters


Solar Panel Monocrystalline Price

  Layout :                  60( 6 × 10 )

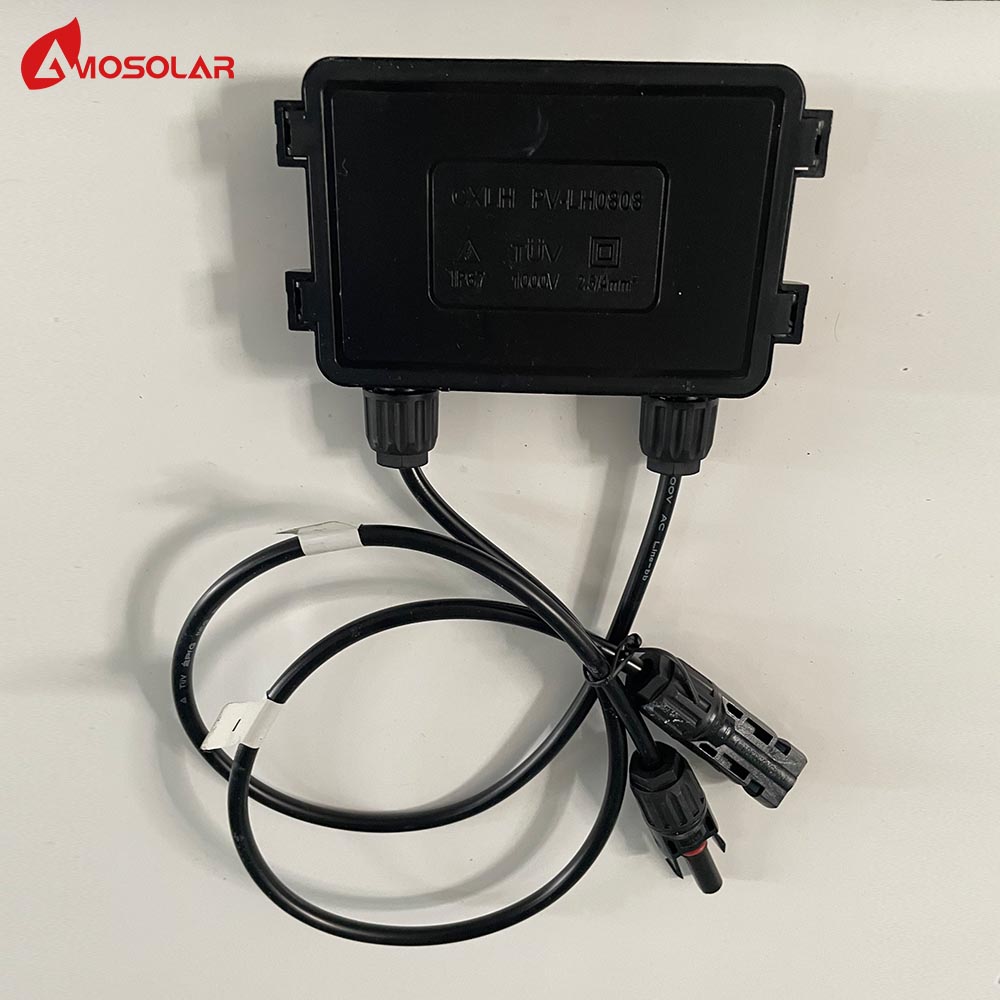

  Junction Box :        Split junction box, IP67, 3 diodes

  Weight:                   17.0KG


  Cable Length :        300mm (+) / 300mm(-)

  Cable  Size :            4mm²(IEC)


  PV Size:                   1640×992×30mm

  Packaging:              36 pcs / pallet

                                1078 pcs / 40HQ container

                               36 pcs / pallet

                                432 pcs / 20GQ container


Factory For Solar Panel
