Amosolar 5KW 6KW 8KW ON Grid Solar System
|
Name |
ON Grid 5KW System |
| Warranty | 25 Years Output Power Guarantee |
| Certificate | TUV/IEC/CEC/CE/ISO/Inmetro |
| Application | Home/Business |
| Output Voltage | EU:220/230/240V US:110/120V |
| Monitoring | Wifi/GPRS |
| Mounting Brackets | Roof/Ground installation |
Electrical Performance Parameters (STC Test)
Monitoring Device
Mounting Structure

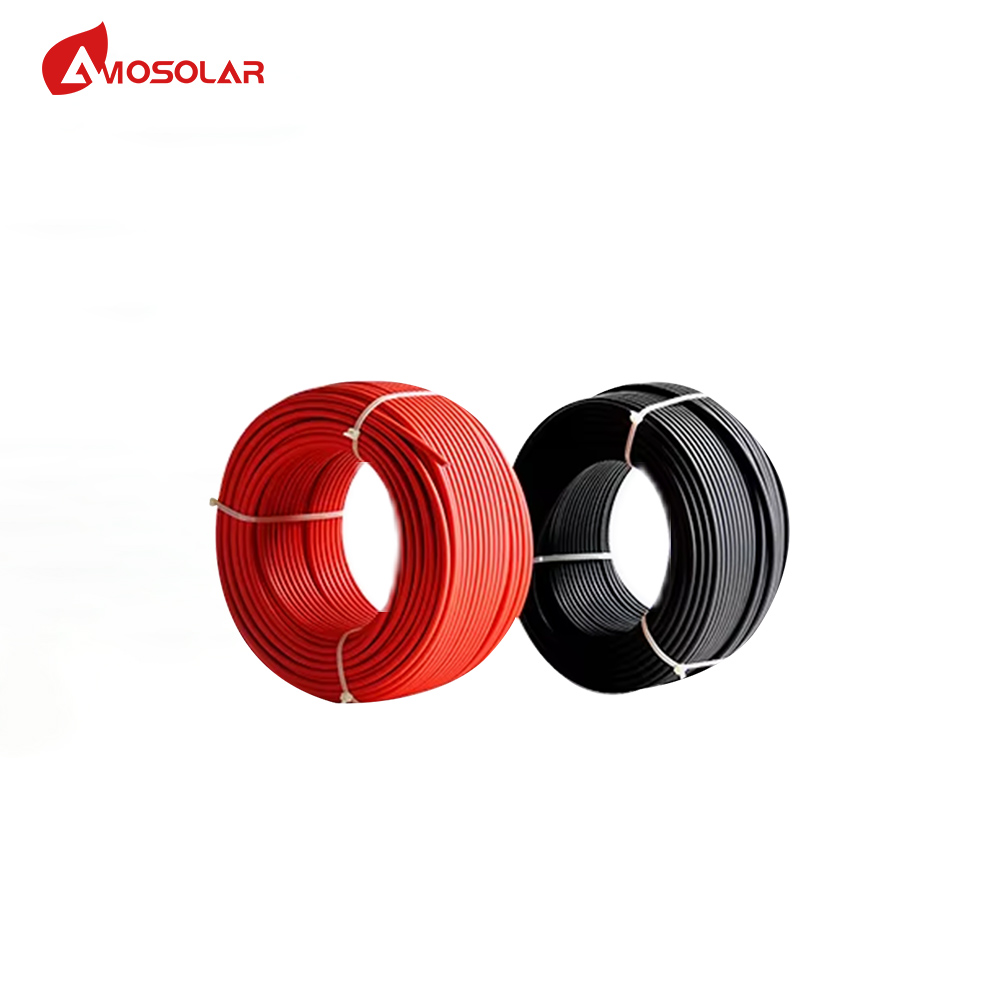

PV Cable
4mm² PV Cable
MC4
MC4 Connector
Standard Wooded Package + System Connecting Drawings (Easy Installing)
System Capacity could be adjustable according customer's situation
Mechanical Parameters
5KW ON Grid Solar System Equipment
Name
Description
Quantity
Solar Panel
Half Cell 550W
10 PCS
PV Combiner Box
0 ~ 2 input 1 output , (Switches,Breaker,SPD)
1 PCS
Inverter
5kw On Grid Inverter
1 PCS
Wifi Module
1 PCS
Roof/Ground Install (Customized)
1 Set
200~500m
20 Prs

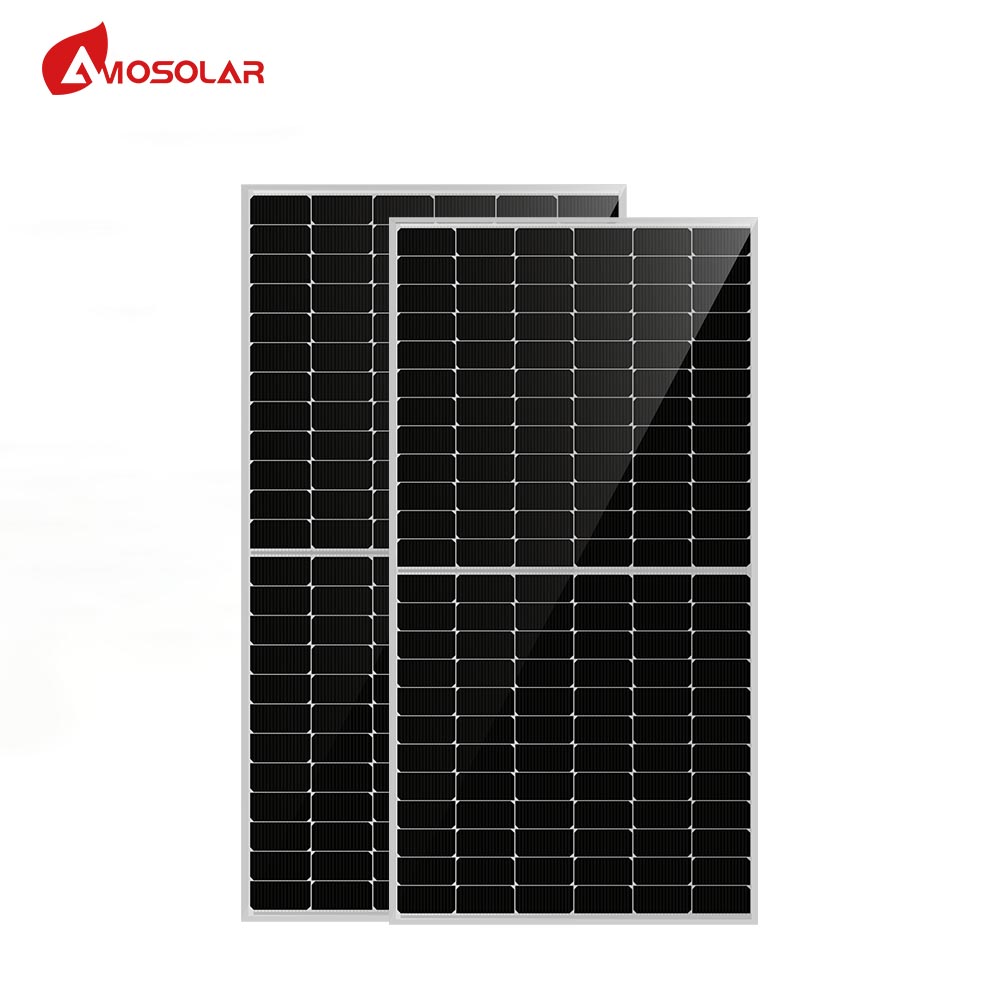

High Efficiecy PV Module
·Higher Output Power
·Less Shading And Lower Resistive Loss
·Better Mechanical Loading
·Lower LCOE

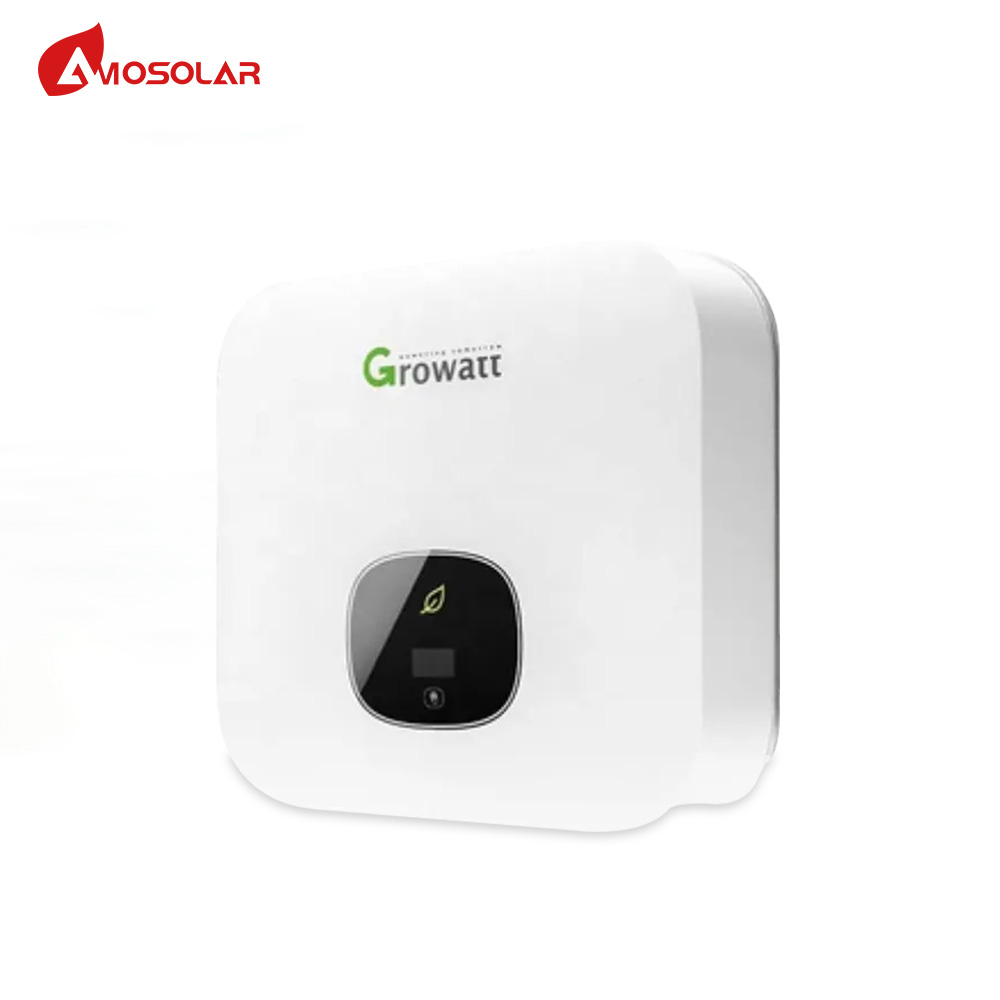

On Grid Solar Inverter
·Max. efficiency 98.6%
·Touch key & OLED display
·Type Ⅱ SPD on DC and AC side
·Compact and light , easy to install
Solar Mounting Solutions
·Good Stability 、Good Load-Bearing Capacity And Stable Structure
·Flat Surface 、Neat Incision And Assembled Installation
·Support Customization According To Needs
·Integrated Services
·Adequate Inventory
