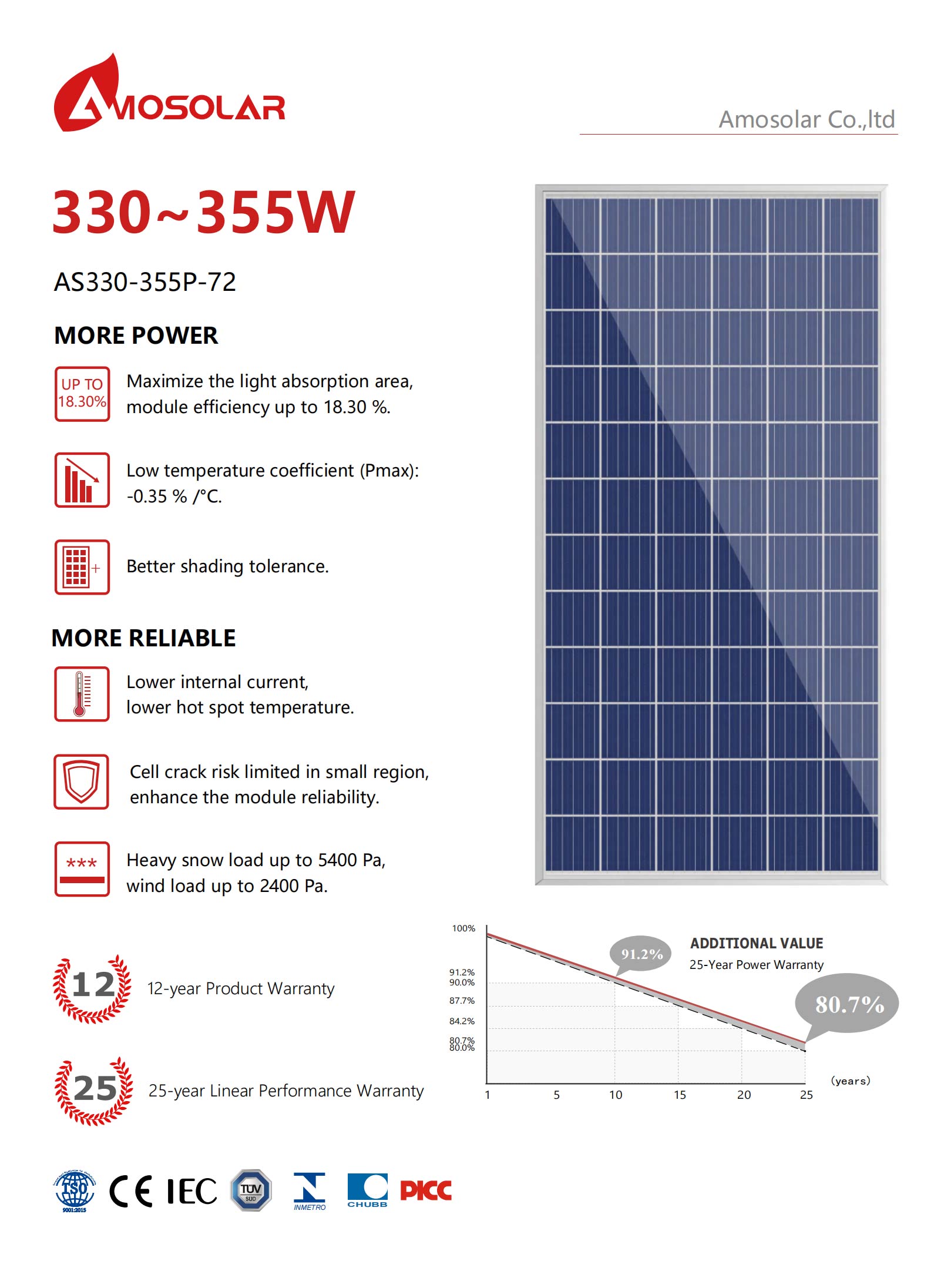

AS330-355P-72
Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price.
Cell | Poly |
Rated Maximum Power | 355W |
Maximum Efficiency | 18.30% |
Weight
|
20.5kgs±3%
|
Cells Type
|
Poly-crystalline 156.75×156.75mm
|
Dimension(LxWxT)
|
1956±2mmx992±2mmx35±1m
|
Packaging
|
31pcs/pallet, 804pcs/40HQ container
|
330W-355W Full Cell Polycrystalline PV Panel Chinese Manufactory : High efficiency solar panels. Compatible with more solar system solution.

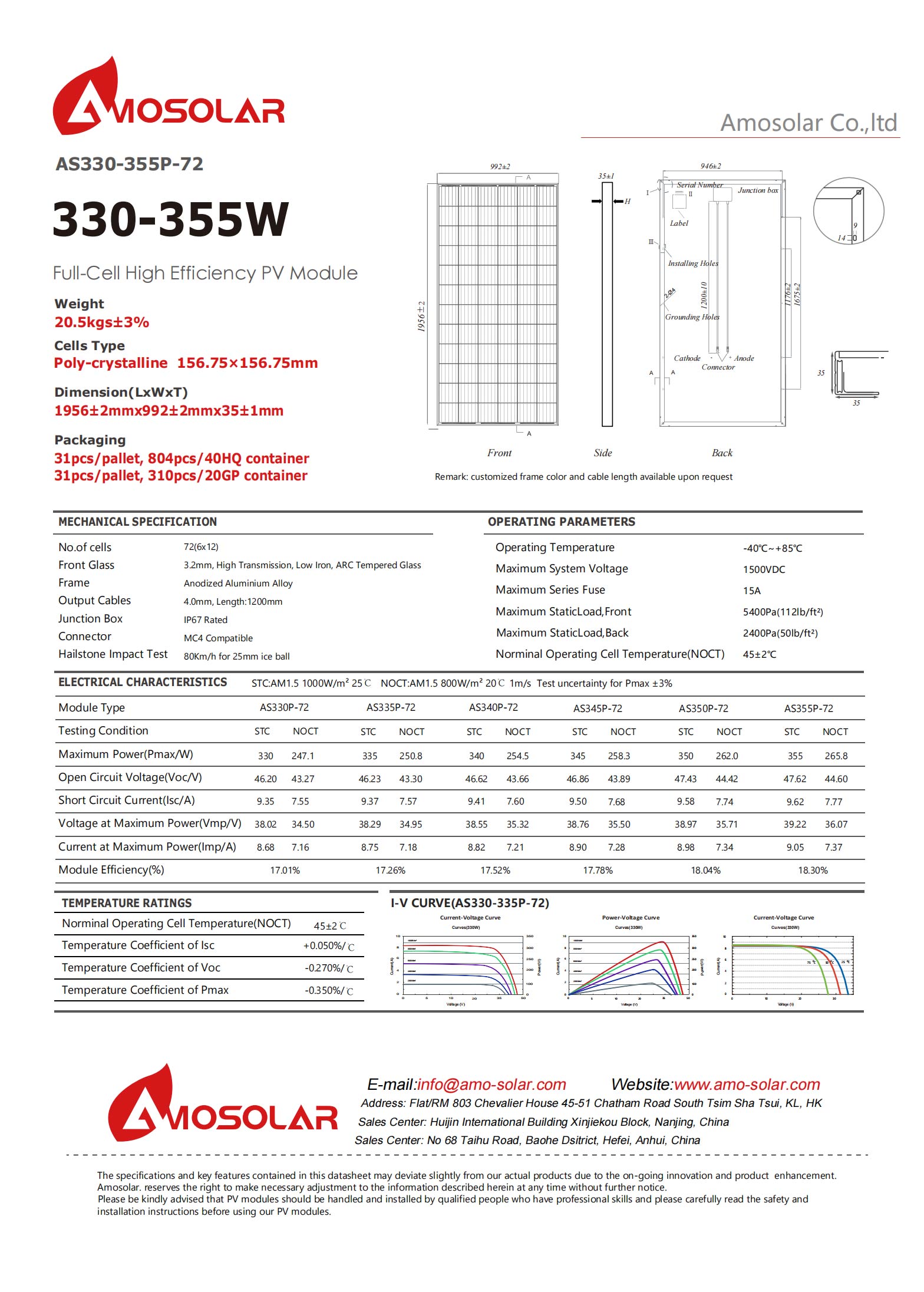

Electrical Performance Parameters (STC Test)
Model | AS330P-72 |
AS335P-72 |
AS340P-72 | AS345P-72 | AS350P-72 | AS355P-72 |
Rated Maximum Power at STC | 330W | 335W | 340W | 345W | 350W | 355W |
Open Circuit Voltage (Voc) | 46.20 | 46.23 | 46.62 | 46.86 | 47.43 | 47.62 |
Maximum Power Voltage (Vmp) | 38.02 | 38.29 | 38.55 | 38.76 | 38.97 | 39.22 |
Short Circuit Current (Isc) | 9.35 | 9.37 | 9.41 | 9.50 | 9.58 | 9.62 |
Maximum Power Current (Imp) |
8.68 |
8.75 | 8.82 | 8.90 | 8.98 | 9.05 |
PV Module Efficiency (%) | 17.01 | 17.26 | 17.52 | 17.78 | 18.04 | 18.30 |
Standard | Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5 |
Mechanical Parameters
Layout : 72( 6 × 12 )

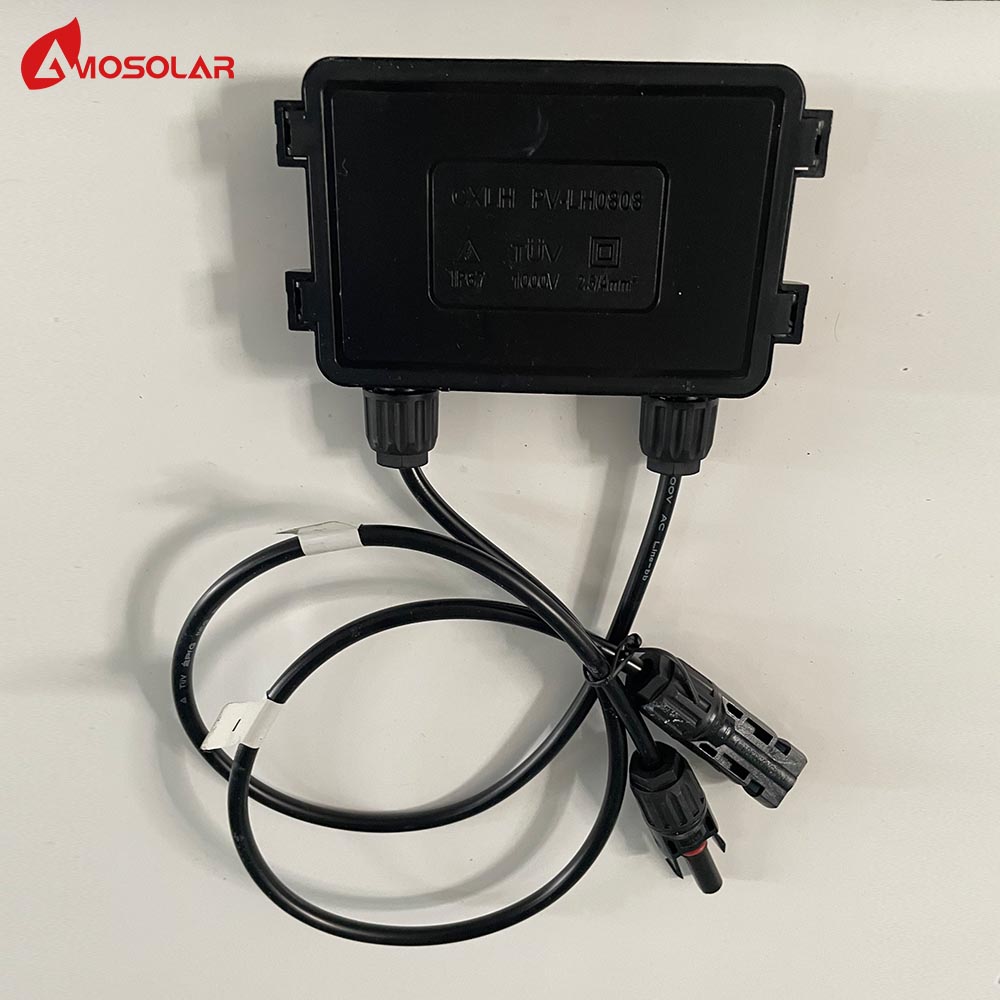

Junction Box : Split junction box, IP67, 3 diodes
Weight: 20.5KG
Cable Length : 300mm (+) / 300mm(-)
Cable Size : 4mm²(IEC)
PV Size: 1956×992×35mm
Packaging: 31 pcs / pallet
804 pcs / 40HQ container
31 pcs / pallet
310 pcs / 20GQ container
