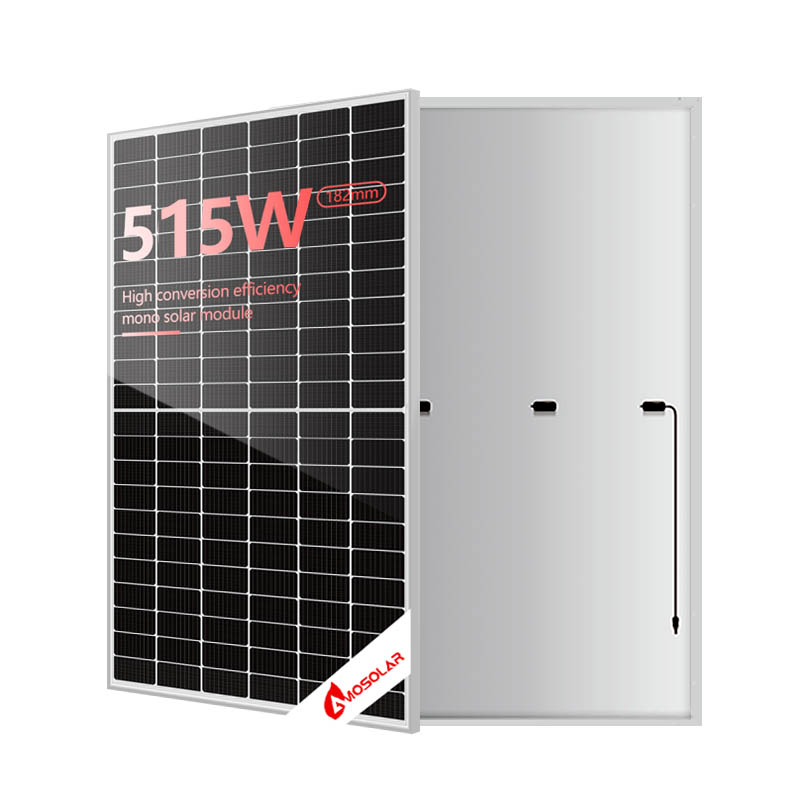

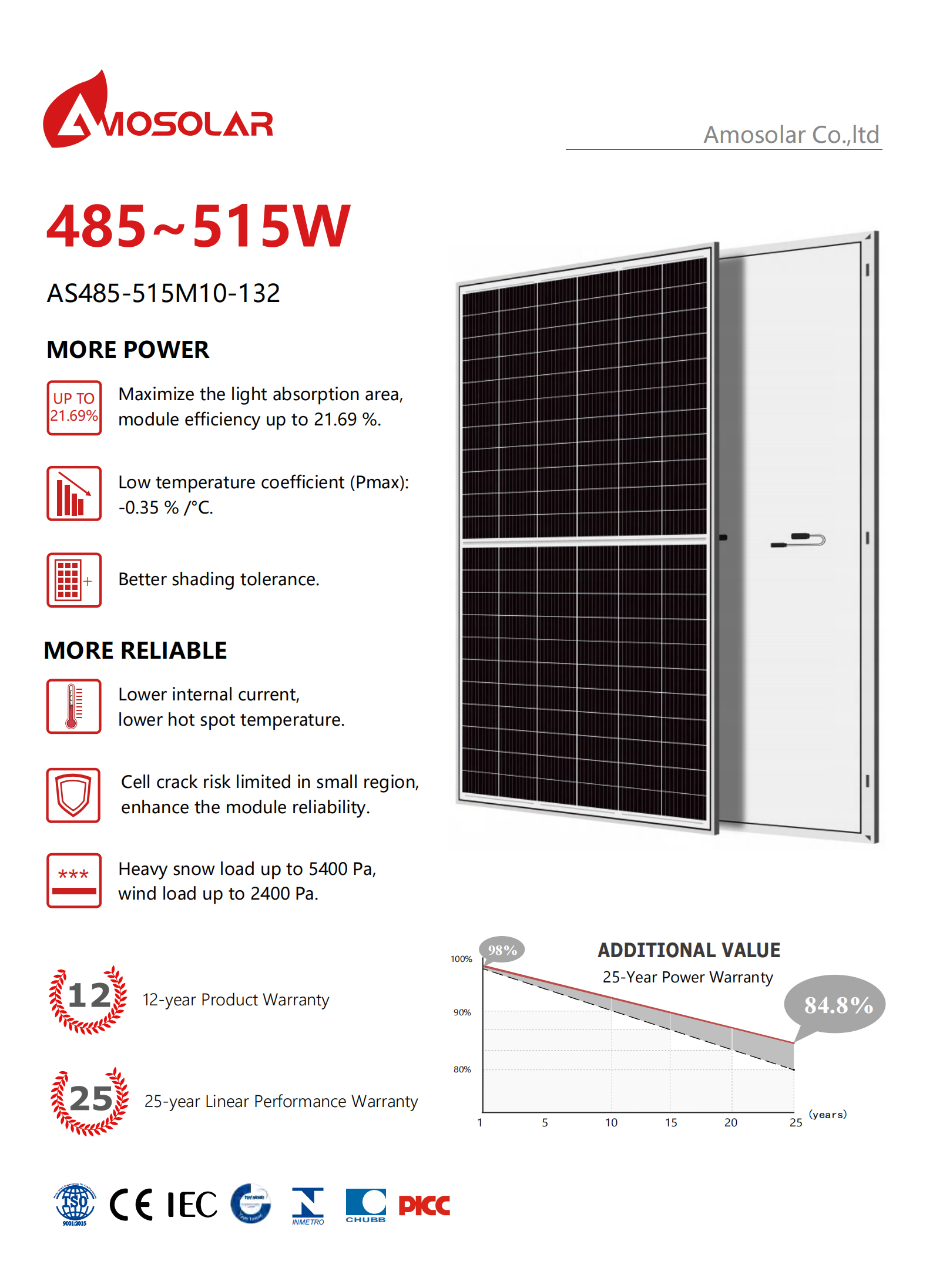

AS485-505M10-132
Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price.
| Cell | Mono |
|
Rated Maximum Power |
515W |
| Maximum Efficiency | 21.69% |
| Weight | 24.5kgs±3% |
| Cells Type | Mono 182x91mm |
| Dimension(LxWxT) | 2094±2mmx1134±2mmx35±1mm |
| Packaging | 31pcs/pallet, 682pcs/40HQ container |
485W-505W Half Cells Mono Solar Panel China Factory : High Quality PV Module with latest PERC technology, 182mm half-cell solar panels with popular models.

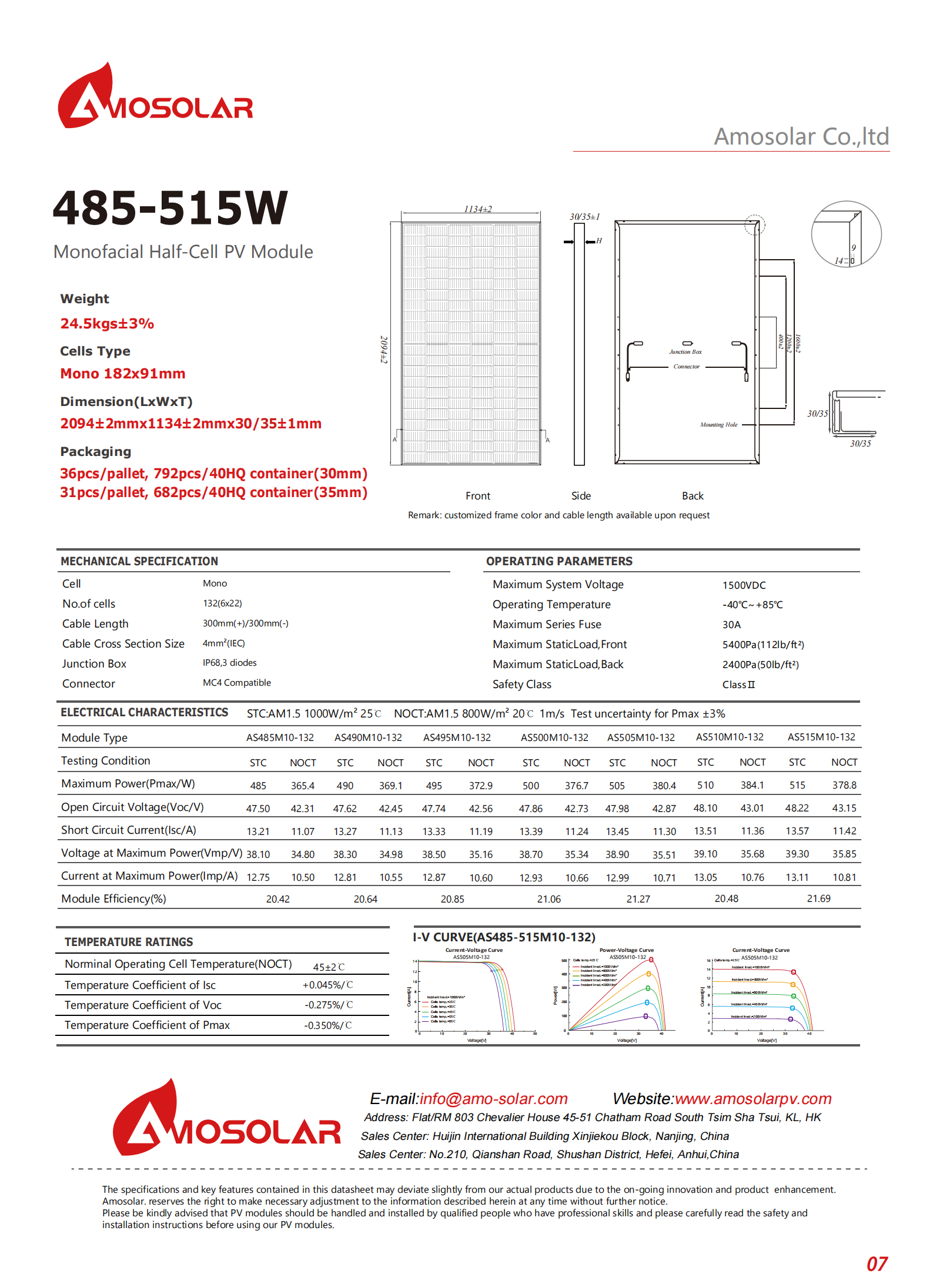

Electrical Performance Parameters (STC Test)
|
Model |
AS485M10-132 |
AS490M10-132 |
AS495M10-132 |
AS500M10-132 |
AS505M10-132 |
AS510M10-132 |
AS510M10-132 |
| Rated Maximum Power at STC |
485W |
490W |
495W | 500W | 505W | 510W | 515W |
| Open Circuit Voltage (Voc) |
47.50 |
47.62 | 47.74 | 47.86 | 47.98 | 45.67 | 42.87 |
| Maximum Power Voltage (Vmp) | 38.10 | 38.30 | 38.50 | 38.70 | 38.90 | 39.10 | 39.30 |
| Short Circuit Current (Isc) | 13.21 | 13.27 | 13.33 | 13.39 | 13.45 | 13.51 | 13.57 |
| Maximum Power Current (Imp) | 12.75 | 12.81 | 12.87 | 12.93 | 12.99 | 13.05 | 13.13 |
| PV Module Efficiency (%) | 20.42 | 20.64 | 20.85 | 21.06 | 21.27 | 20.48 | 21.69 |
| Standard |
|
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5 |
|||||
Mechanical Parameters
Layout : 132( 6 × 22 ）
Weight: 26.0KG
Cable Size : 4mm²（IEC)
Packaging: 31 pcs / pallet
682 pcs / 40HQ container
