100KW Storage Solar System Hybrid PV Solution

100KW 150KW 200KW Storage Solar System
100KW 150KW 200KW Storage Solar System
100KW 150KW 200KW Storage Solar System
100KW 150KW 200KW Storage Solar System

100KW Storage Solar System Hybrid PV Solution

Amosolar 100KW PV Solution


Name
Storage 100KW System
Warranty 25 Years Output Power Guarantee
Certificate TUV/IEC/CEC/CE/ISO/Inmetro
Application Home/Business
Output Voltage EU:220/230/240V ; 380/400V
Monitoring Wifi/GPRS
Mounting Brackets Roof/Ground installation



Electrical Performance Parameters (STC Test)

100KW PV Solution
Name
Description
Quantity

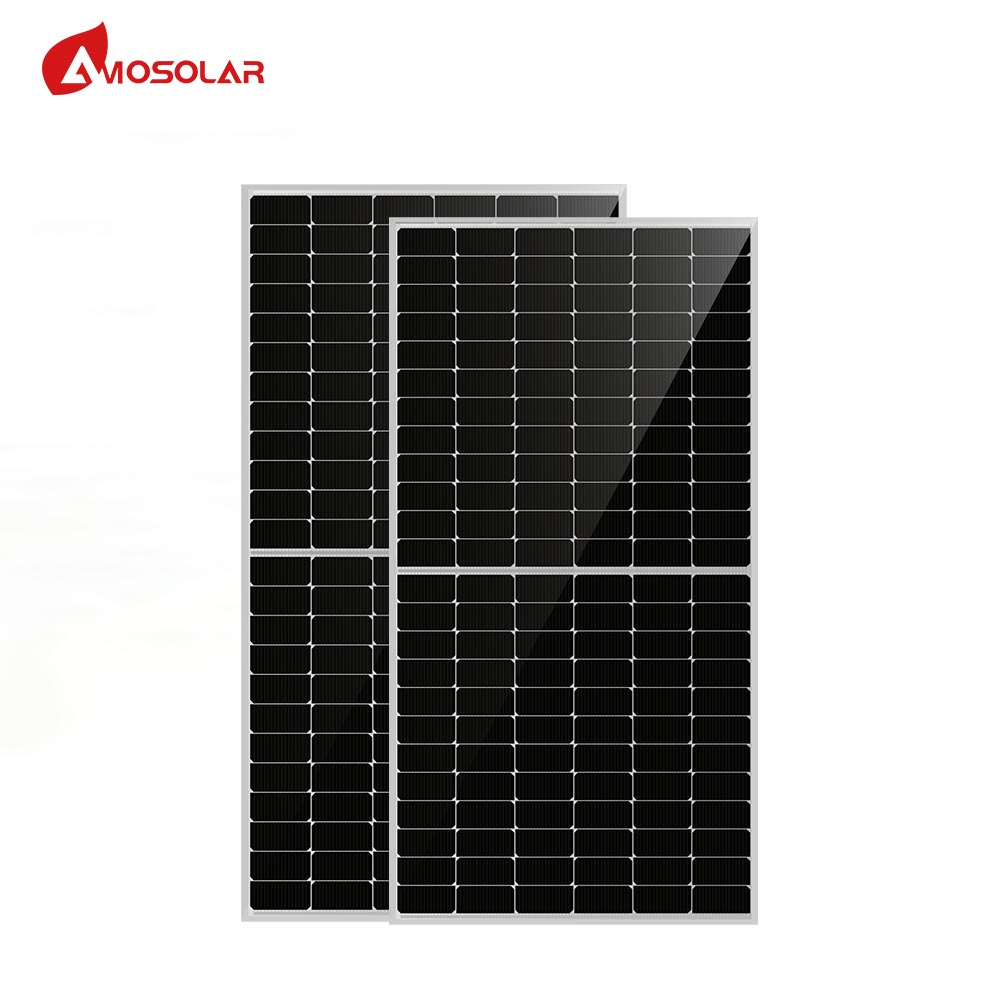

Solar Panel
Half Cell 550W
182 PCS

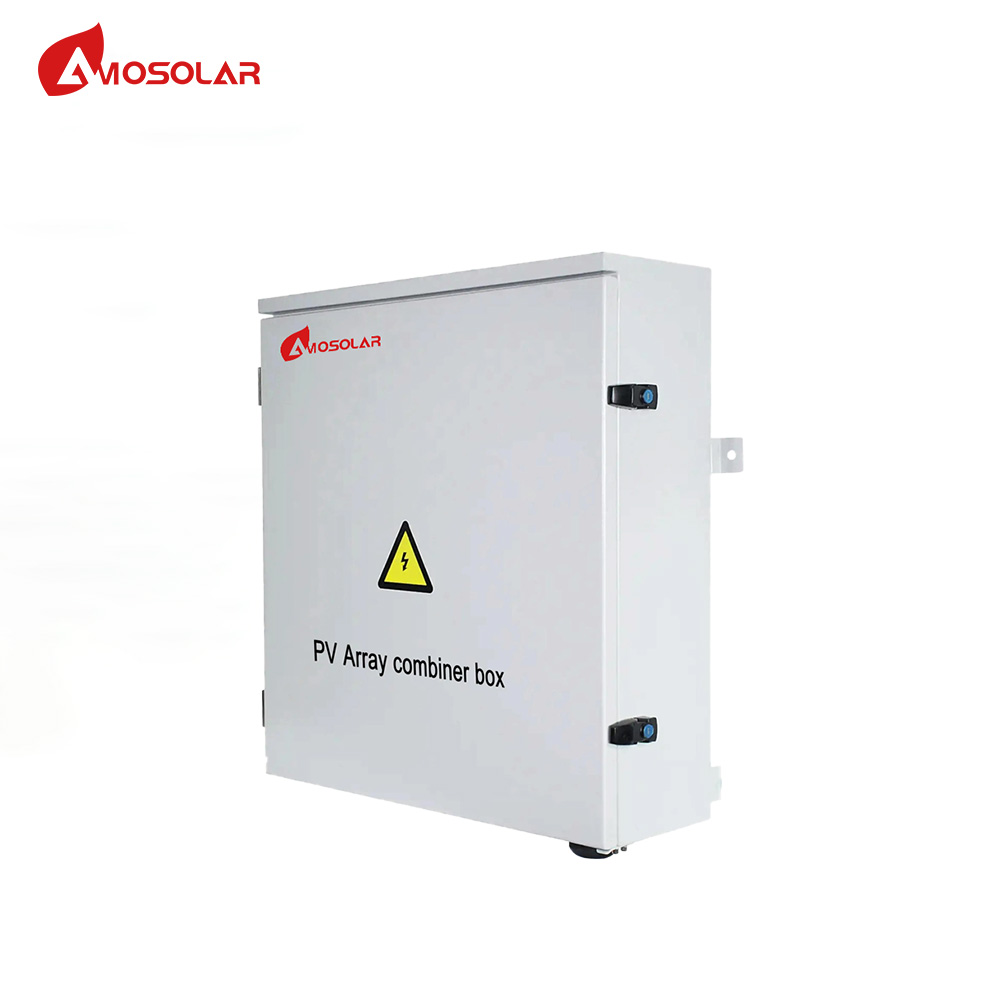

PV Combiner Box
10 ~ 20 input 1 output , (Switches,Breaker,SPD)
1 PCS
Inverter
100kw Hybrid Inverter 1 PCS
Battery AGM/GEL/Lithium Battery 260~500 PCS

Mounting Structure

Roof/Ground Install (Customized) 1 Set

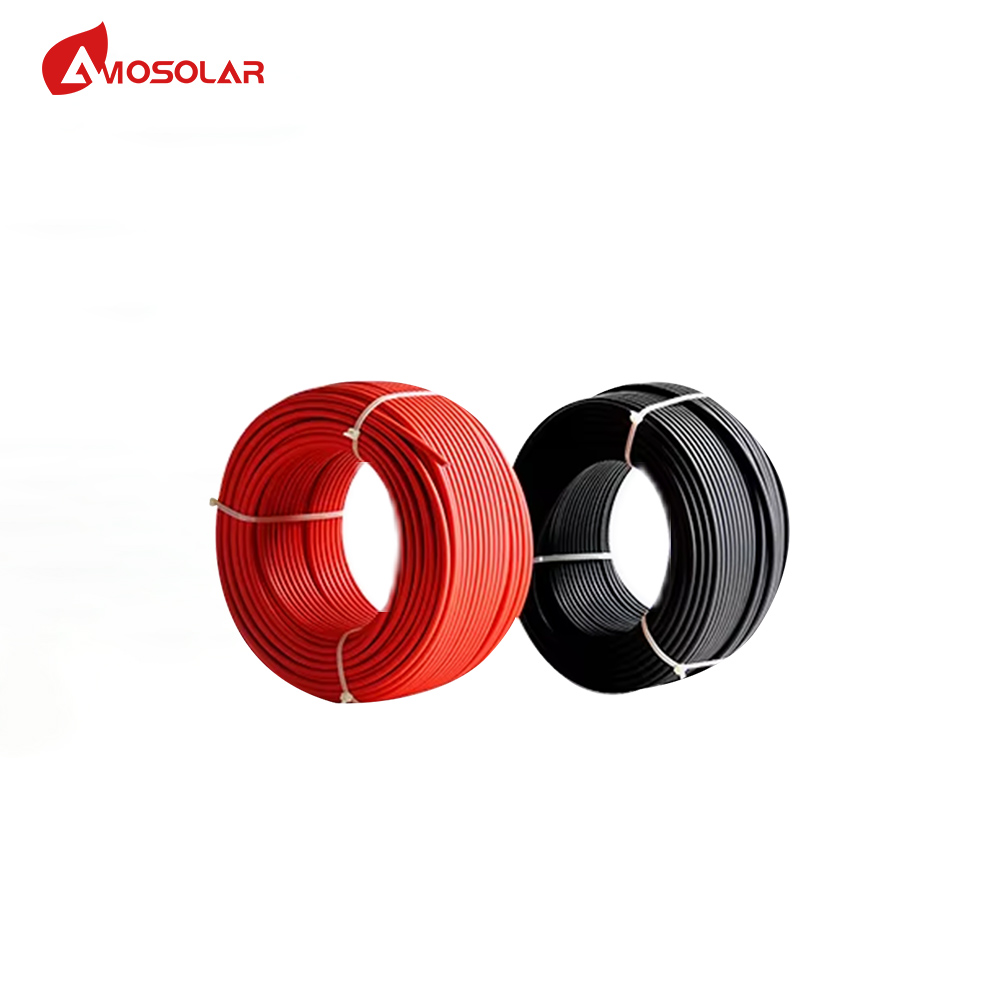

PV Cable

6mm² PV Cable

500~2000m

MC4

MC4 Connector

100 Prs

Standard Wooded Package + System Connecting Drawings (Easy Installing)

System Capacity could be adjustable according customer's situation

Mechanical Parameters


Solar Panel Greenhouse



            High Efficiecy PV Module


           ·30-year Linear Performance Warranty

           ·Higher Output Power

           ·Less Shading And Lower Resistive Loss

           ·Better Mechanical Loading

           ·Lower LCOE






Camping Solar Panel



          Hybrid Solar Inverter


        ·All-in-one hybrid inverter

        ·Seamless on/off grid transfer

        ·Programmable working mode

        ·Support remote control of DG

        ·Touchscreen LCD

        ·Quadruple capacity by paralleling 4 units





550W Panel Solar



                                 Battery Specification


                              ·Easy installation and maintenance

                              ·Safety first

                              ·High density

                              ·Long lifespan

                              ·Cell balancing technology



550W Panel Solar


             Solar Mounting Solutions


            ·Good Stability 、Good Load-Bearing Capacity And Stable Structure

            ·Flat Surface 、Neat Incision And Assembled Installation

            ·Support Customization According To Needs

            ·Integrated Services

            ·Adequate Inventory






Mono Crystalline Solar Panel




Buy Solar Panels From China Direct
