530W 535W 540W 545W 550W 555W 560WBifacial Double Glass Half Cells Mono Solar Panel China Factory

545 Watt Solar Panel
545 Watt Solar Panel
545 Watt Solar Panel
545 Watt Solar Panel
545 Watt Solar Panel

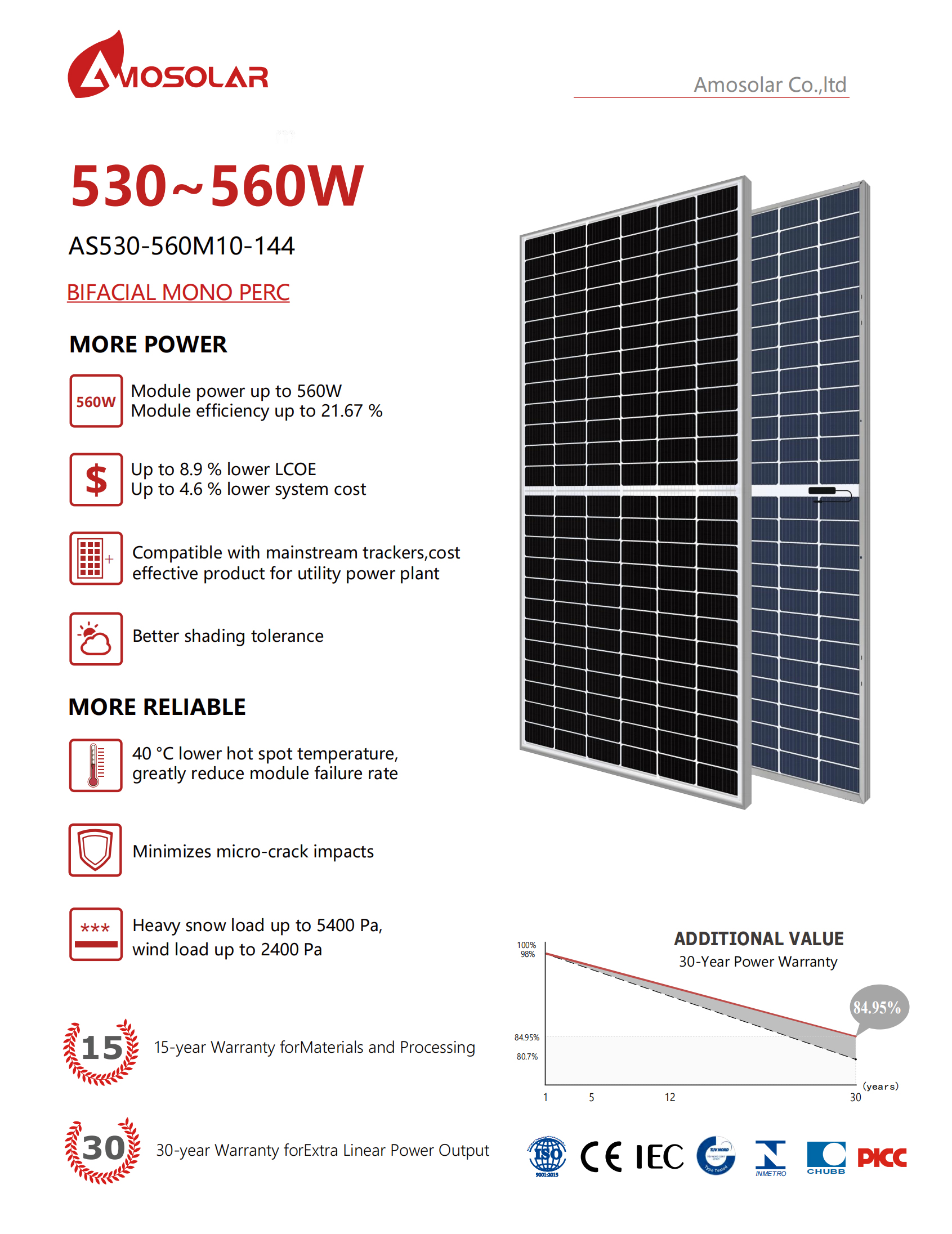

530W 535W 540W 545W 550W 555W 560WBifacial Double Glass Half Cells Mono Solar Panel China Factory

AS530-560M10-144B

Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price.

Cell Mono
Rated Maximum Power
545W
Maximum Efficiency 21.67%
Weight
32.3kgs±3%
Cells Type
Mono 182x91mm
Dimension(LxWxT)
2279±2mmx1134±2mmx30±1mm
Packaging
31pcs/pallet, 620pcs/40HQ container

525W-550W Bifacial Double Glass Half Cells Mono Solar Panel China Factory : 144 half cut solar cell MBB A grade PV Modules from Chinese manufactory.

Monocrystalline Solar Panel 500W

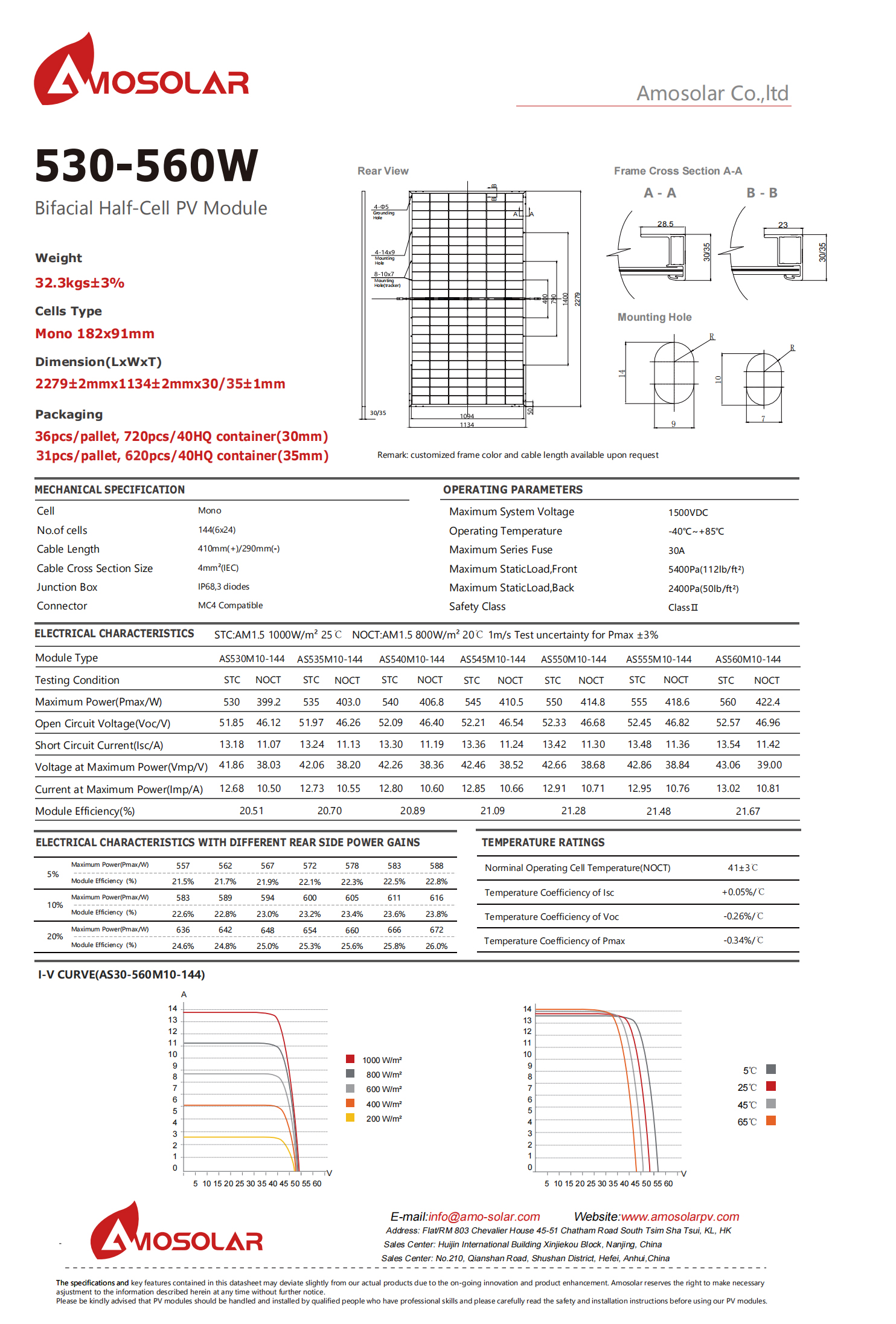

Electrical Performance Parameters (STC Test)


Model
AS530M10-144B
AS535M10-144B
AS540M10-144B
AS545M10-144B
AS5550M10-144B
AS555M10-144B
AS560M10-144B
Rated Maximum Power at STC 530W 535W 540W 545W 550W
555W
560W
Open Circuit Voltage (Voc) 48.80 49.00 49.20 49.40 49.60 52.45 52.57
Maximum Power Voltage (Vmp) 40.90 41.10 41.30 41.50 41.70 42.86 43.06
Short Circuit Current (Isc) 13.80 13.85 13.90 13.95 14.00 13.48 13.54
Maximum Power Current (Imp) 12.96 13.02 13.08 13.14 13.20 12.95 13.02
PV Module Efficiency (%) 20.50 20.70 20.90 21.09 21.28 21.48 21.67
Standard Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5


Mechanical Parameters


Solar Panel Half Cut

  Layout :                  144( 6 × 24 )


  Junction Box :        Split junction box, IP68, 3 diodes

  Weight:                   28.0KG


  Cable Length :        300mm (+) / 300mm(-)

  Cable  Size :            4mm²(IEC)


  PV Size:                   2285×1134×35mm

  Packaging:              31 pcs / pallet

                                   620 pcs / 40HQ container
