Topcon N-Type 415W 420W 425W 430W 435 440W Full Black Solar Panel
Products
Home / SOLAR PANEL / TOPCon PV Module / Full Black 182mm M10 /

Topcon N-Type 415W 420W 425W 430W 435 440W Full Black Solar Panel

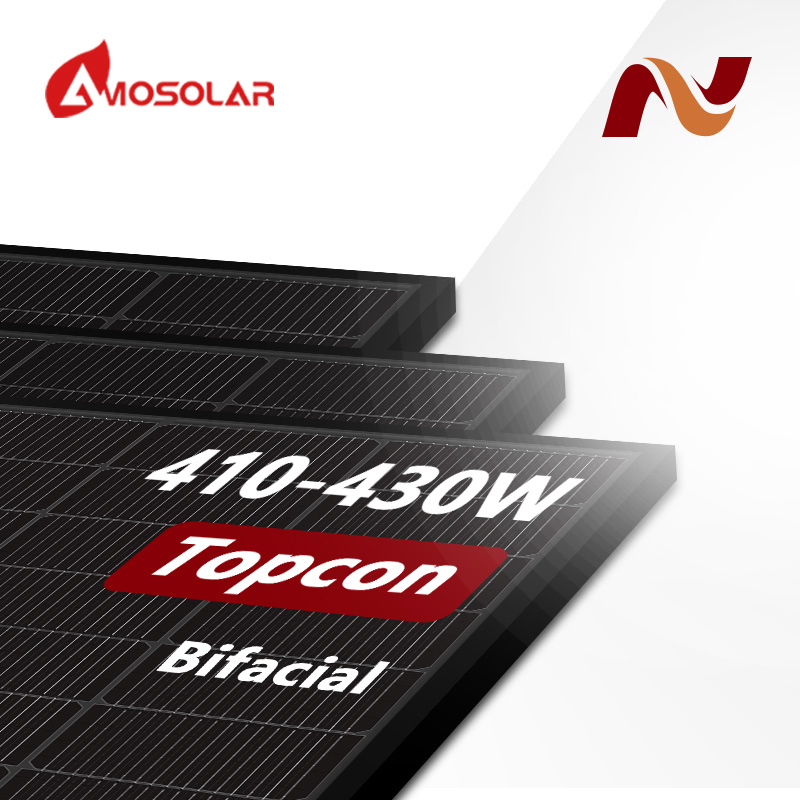

Topcon solar panels
Topcon solar panels
Topcon solar panels
Topcon solar panels
Topcon solar panels
Topcon solar panels
Topcon solar panels

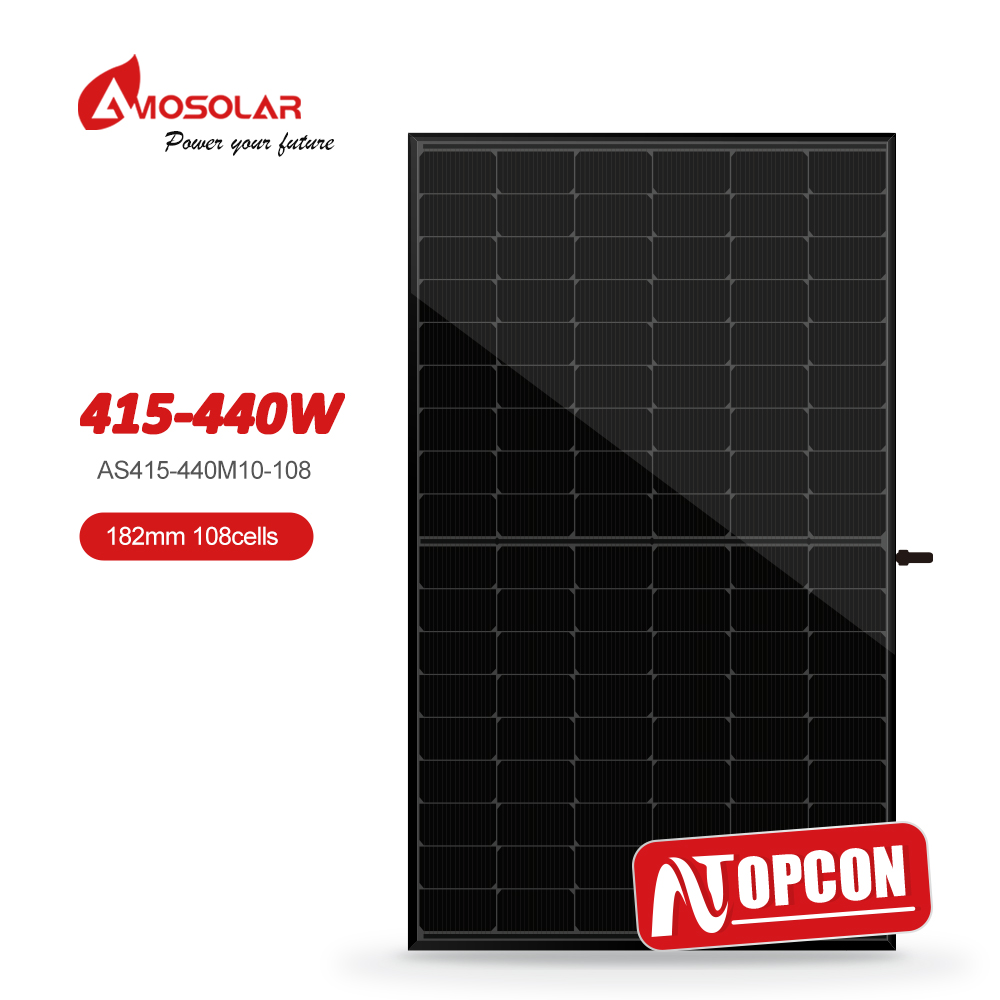

Topcon N-Type 415W 420W 425W 430W 435 440W Full Black Solar Panel

AS415-440M10-108B

Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price.

Cell Mono
Rated Maximum Power
440W
Maximum Efficiency 22.25%
Weight
21kgs±3%
Cells Type
Mono 182x91mm
Dimension(LxWxT)
1722±2mmx1134±2mmx35±1mm
Packaging
31pcs/pallet, 806pcs/40HQ container

415W-440W TOPcon N-Type Photovoltaic Panel Full Black Solar PV Module : 108 half cut solar cell MBB A grade PV Modules from Chinese manufactory.

Monocrystalline Solar Panel 500W



Electrical Performance Parameters (STC Test)


Model
AS415M10-108B
AS420M10-108B
AS425M10-108B
AS430M10-108B
AS4335M10-108B
AS440M10-108B
Rated Maximum Power at STC 415W
420W 425W 430W 435W 440W
Open Circuit Voltage (Voc) 39.29 39.41 39.53 39.65 39.77 39.89
Maximum Power Voltage (Vmp) 31.65 31.85 32.05 32.25 32.45 32.65
Short Circuit Current (Isc) 13.47 13.53 13.59 13.65 13.71 13.77
Maximum Power Current (Imp) 13.12 13.19 13.27 13.34 13.41 13.48
PV Module Efficiency (%) 21.25 21.51 21.76 22.02 22.20 22.53
Standard Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5


Mechanical Parameters


Solar Panel Half Cut

  Layout :                  108( 6 × 18 )


  Junction Box :        Split junction box, IP68, 3 diodes

  Weight:                   21KG


  Cable Length :        300mm (+) / 300mm(-)

  Cable  Size :            4mm²(IEC)


  PV Size:                   1722×1134×35mm

  Packaging:              31 pcs / pallet

                                  306 pcs / 40HQ container
