AS480-505M10-132
| Cell | Mono |
|
Rated Maximum Power |
505W |
| Maximum Efficiency | 21.30% |
| Junction Box | IP 68 |
| Maximum System Voltage | 1000V/1500V DC |
| Operating Temperature | -40℃ ~ +85℃ |
| Connectors | MC4 EVO2/QC4.10-35 |
480W-505W Half Cells Mono Solar Panel China Factory : High Quality PV Module with latest PERC technology, 182mm half-cell solar panels with popular models.
Electrical Performance Parameters (STC Test)
|
Model |
AS480M10-132 |
AS485M10-132 |
AS490M10-132 |
AS495M10-132 |
AS500M10-132 |
AS505M10-132 |
| Rated Maximum Power at STC |
480W |
485W | 490W | 495W | 500W | 505W |
| Open Circuit Voltage (Voc) | 45.07 | 45.22 | 45.37 | 45.52 | 45.67 | 45.82 |
| Maximum Power Voltage (Vmp) | 37.36 | 37.81 | 37.97 | 38.13 | 38.29 | 38.45 |
| Short Circuit Current (Isc) | 13.65 | 13.72 | 13.79 | 13.86 | 13.93 | 14.00 |
| Maximum Power Current (Imp) | 12.75 | 12.83 | 12.90 | 12.98 | 13.06 | 13.13 |
| PV Module Efficiency (%) | 20.21 | 20.42 | 20.64 | 20.85 | 21.06 | 21.30 |
| Standard |
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5 |
|||||
Mechanical Parameters
Layout : 132( 6 × 22 ）
Weight: 26.0KG
Cable Size : 4mm²（IEC)

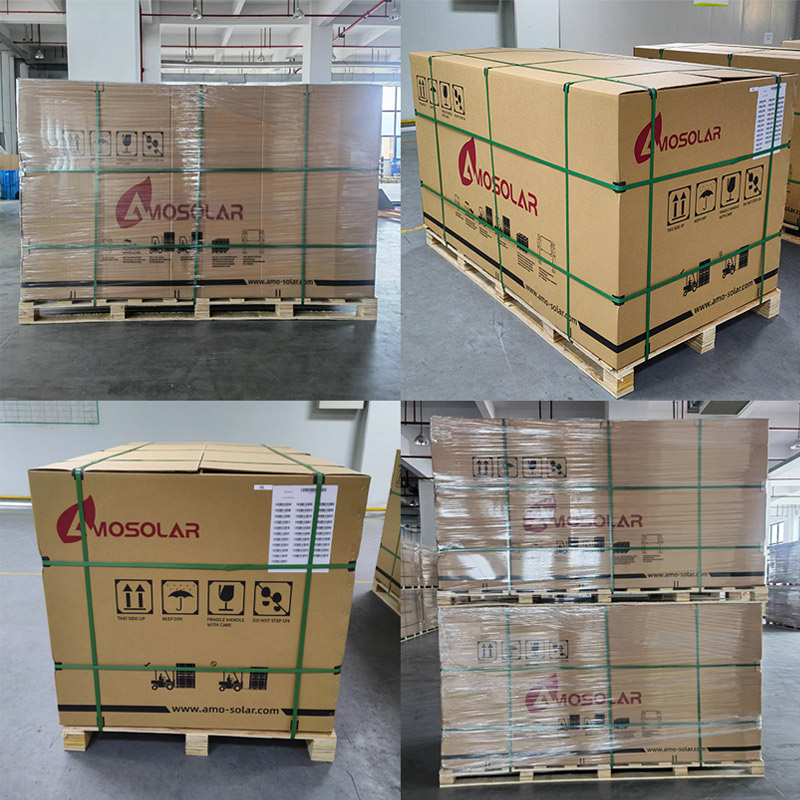

Packaging: 31 pcs / pallet
682 pcs / 40HQ container
Answer 1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.
· Question 2: What is the lead time?
Answer 2:Normally 15 working days after advance payment.
· Question 3: What is your monthly capacity?
Answer 3:Monthly capacity is about 200MW.
· Question 4:What is the warranty period, how many years?
Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.
· Question 5: How is your technical support?
Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
