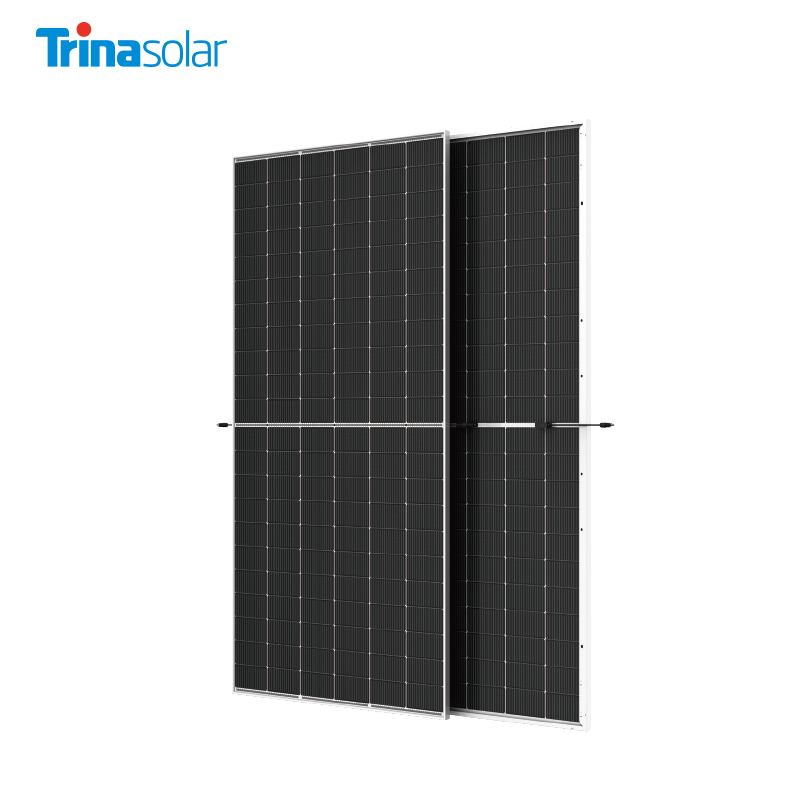

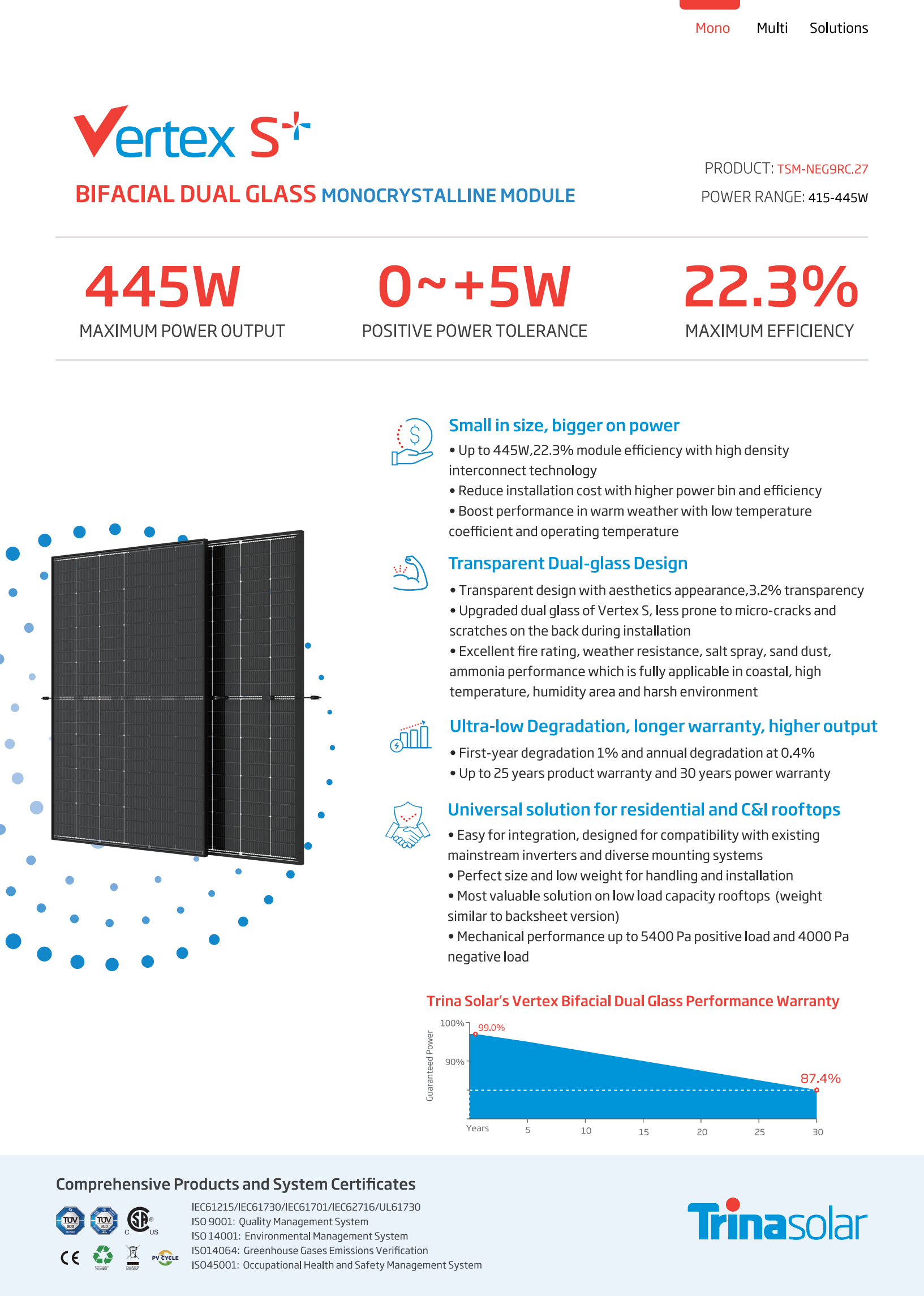

TSM-NEG9RC.27 415-445W
| Cell Arrangement | 144 (24 X 6) |
| Junction Box | IP68 rated |
| Weight | 21.0KG |
| Cable Length | N 280mm/P 280mm |
| Cable Size | 4 mm2 |
| PV Size | 1762 x1134x 30mm |
| Packaging | 36 pcs/pallet 936pcs/40HQ container |
Electrical Performance Parameters (STC Test)
| Model | TSM-NEG9RC.27 415W | TSM-NEG9RC.27 420W | TSM-NEG9RC.27 425W | TSM-NEG9RC.27 430W | TSM-NEG9RC.27 435W | TSM-NEG9RC.27 440W | TSM-NEG9RC.27 445W |
| Rated Maximum Power at STC | 415W | 420W | 425W | 430W | 435W | 440W | 445W |
| Open Circuit Voltage (Voc) | 50.10 | 50.50 | 50.90 | 51.40 | 51.80 | 52.20 | 52.60 |
| Maximum Power Voltage (Vmp) | 42.10 | 42.50 | 42.90 | 43.20 | 43.60 | 44.00 | 44.30 |
| Short Circuit Current (Isc) | 10.50 | 10.53 | 10.56 | 10.59 | 10.64 | 10.67 | 10.71 |
| Maximum Power Current (Imp) | 9.86 | 9.89 | 9.92 | 9.96 | 9.99 | 10.01 | 10.05 |
| PV Module Efficiency (%) | 20.80 | 21.00 | 21.30 | 21.50 | 21.80 | 22.00 | 22.30 |
| Standard | Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5 | ||||||
CS3W-435-465MS Cell Arrangement 144 [2 X(12 X 6) Junction Box IP68, 3 bypass diodes Weight 24.3KG Cable Length 500 mm (19.7 in)(+)/350 mm (13.8 in) (-) Cable Size 4 mm2 (lEC), 12 AWG (UL) PV Size 2108 X1048 X35 mm Packaging 30 pcs/pallet 660pcs/40HQ container
Learn More
CS6W-530-555MS Cell Arrangement 120 [2 X (10 X 6)] Junction Box IP68, 3 bypass diodes Weight 31.0KG Cable Length 460 mm (18.1 in)(+)/340 mm (13.4 in) (-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 2172 X1303 X35 mm Packaging 31 pcs/pallet 527pcs/40HQ container
Learn More
CS6W-530-555MS Cell Arrangement 144 [2X(12 X6)] Junction Box IP68, 3 bypass diodes Weight 27.6KG Cable Length 410 mm (16.1 in) (+)/ 290 mm (11.4 in)(-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 2261 X 1134 X30 mm Packaging 35pcs/pallet 700pcs /40HQ container
Learn More
JAM54D41 430-455/LB Cell Arrangement 108 (6 X18) Junction Box IP68, 3 diodes Weight 22KG Cable Length 300mm(+)/400mm(-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 1762X1134X30 mm Packaging 36 pcs/pallet 936pcs/40HQ container
Learn More
JAM72D42 615-640W/LB Cell Arrangement 144(6 X 24) Junction Box IP68, 3 diodes Weight 34.6KG Cable Length 300mm(+)/400mm(-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 2465 X1052X35 mm Packaging 36 pcs/pallet 576pcs/40HQ container
Learn More
TSM-NEG19RC.20 580-605W Cell Arrangement 150 Junction Box IP68 rated Weight 33.7KG Cable Length N 280mm/P 280mm Cable Size 4 mm2 (IEC) PV Size 2384x1134x30 mm Packaging 36 pcs/pallet 720pcs/40HQ container
Learn More
TSM-NEG21C.20 675-700W Cell Arrangement 132 Junction Box IP68 rated Weight 38.3KG Cable Length 350/280mm Cable Size 4 mm2 (IEC) PV Size 2384 x1303x 35 mm Packaging 33 pcs/ pallet 594pcs/40HQ container
Learn More
LR7-72HGD 585~620M Cell Arrangement 144(24 X 6) Junction Box IP68, 3 diodes Weight 33.5KG Cable Length +400,-200mm/±1400mm Cable Size 4 mm2 (lEC) PV Size 2382x1134x30mm Packaging 36 pcs/pallet 720pcs/40HQ container
Learn More
