525W 530W 535W 540W 545W 550W All Black Half Cells Mono Solar Panel China Factory
Products
Home / SOLAR PANEL / AMO M10 Cells Serial /

525W 530W 535W 540W 545W 550W All Black Half Cells Mono Solar Panel China Factory

550 Watt Solar Panel
550 Watt Solar Panel
550 Watt Solar Panel
550 Watt Solar Panel
550 Watt Solar Panel
550 Watt Solar Panel

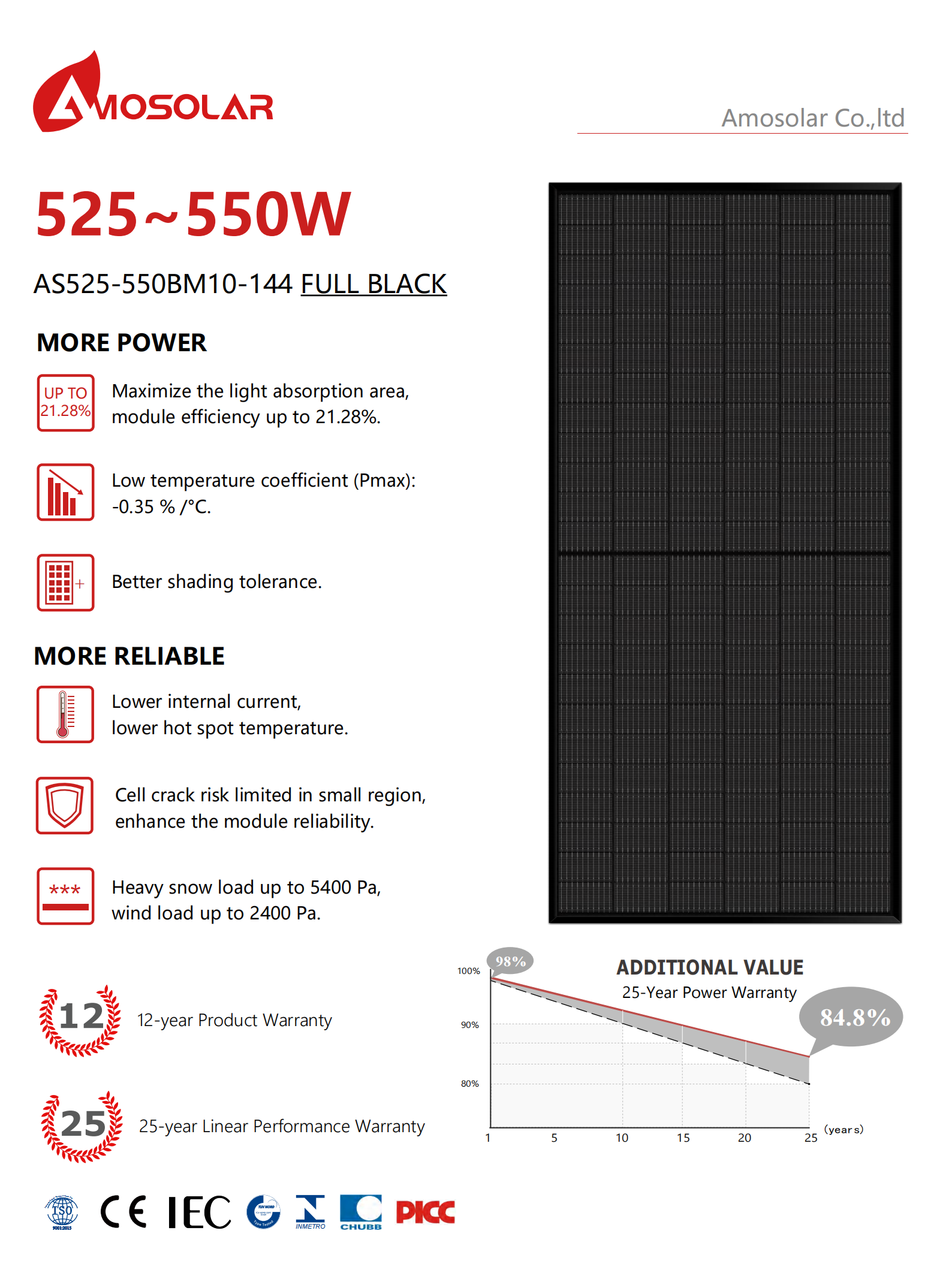

525W 530W 535W 540W 545W 550W All Black Half Cells Mono Solar Panel China Factory

AS525-550M10-144


Cell Mono
Rated Maximum Power
550W
Maximum Efficiency 21.28%
Junction Box IP 68
Maximum System Voltage 1000V/1500V DC
Operating Temperature -40℃ ~ +85℃
Connectors MC4 EVO2/QC4.10-35

525W-550W All Black Half Cells Mono Solar Panel China Factory : 144 half cut solar cell MBB A grade PV Modules from Chinese manufactory.

Monocrystalline Solar Panel 500W

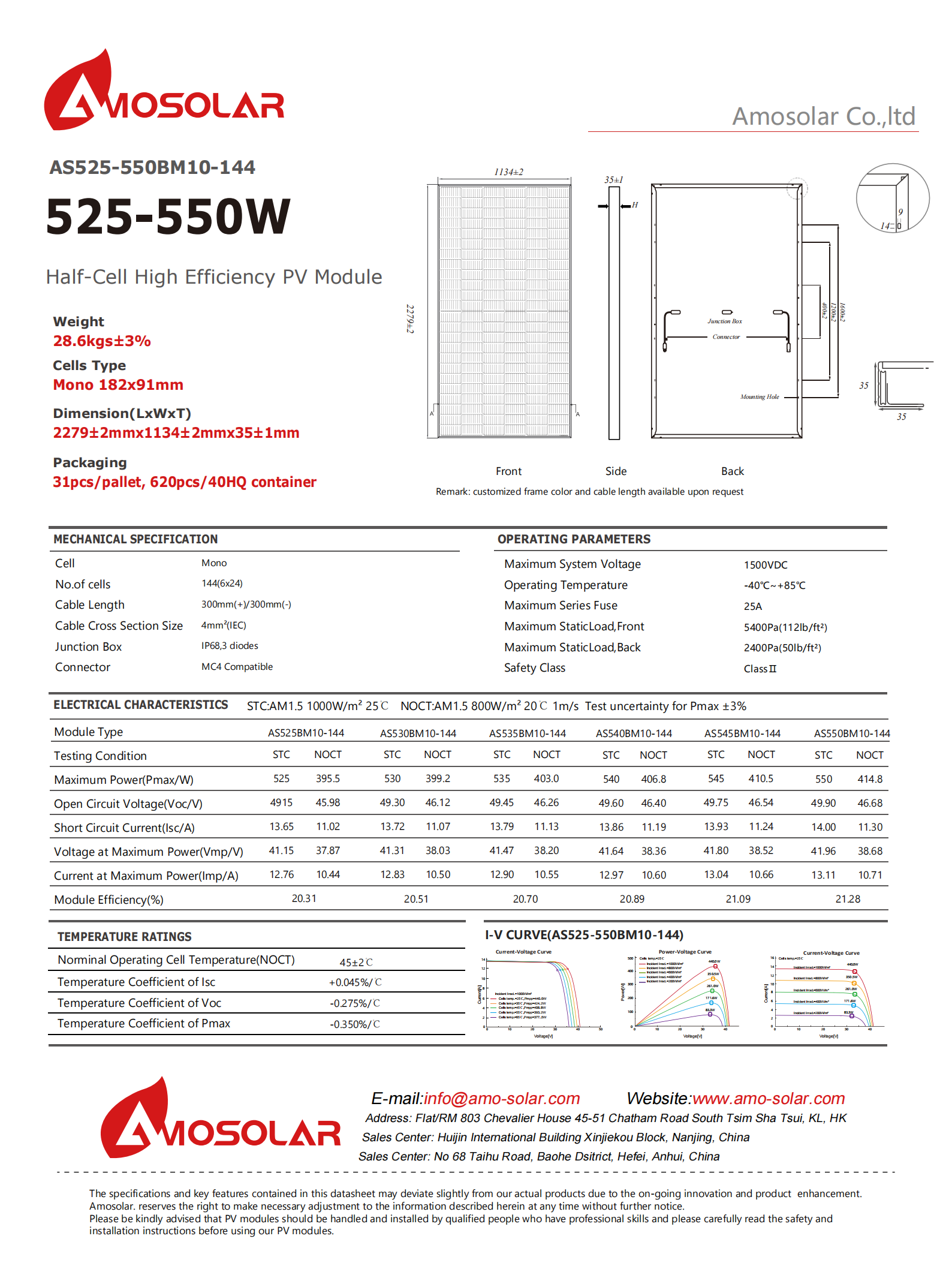

Electrical Performance Parameters (STC Test)


Model
AS525BM10-144 AS530BM10-144
AS535BM10-144
AS540BM10-144
AS545BM10-144
AS550BM10-144
Rated Maximum Power at STC 525W
530W 535W 540W 545W 550W
Open Circuit Voltage (Voc) 49.15 49.30 49.45 49.60 49.75 49.90
Maximum Power Voltage (Vmp) 41.15 41.31 41.47 41.64 41.80 41.96
Short Circuit Current (Isc) 13.65 13.72 13.79 13.86 13.93 14.00
Maximum Power Current (Imp) 12.76 12.83 12.90 12.97 13.04 13.11
PV Module Efficiency (%) 20.31 20.51 20.70 20.89 21.09 21.28
Standard Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5


Mechanical Parameters


Solar Panel Half Cut

  Layout :                  144( 6 × 24 )


  Junction Box :        Split junction box, IP68, 3 diodes

  Weight:                   28.6KG


  Cable Length :        300mm (+) / 300mm(-)

  Cable  Size :            4mm²(IEC)


  PV Size:                   2279×1134×35mm

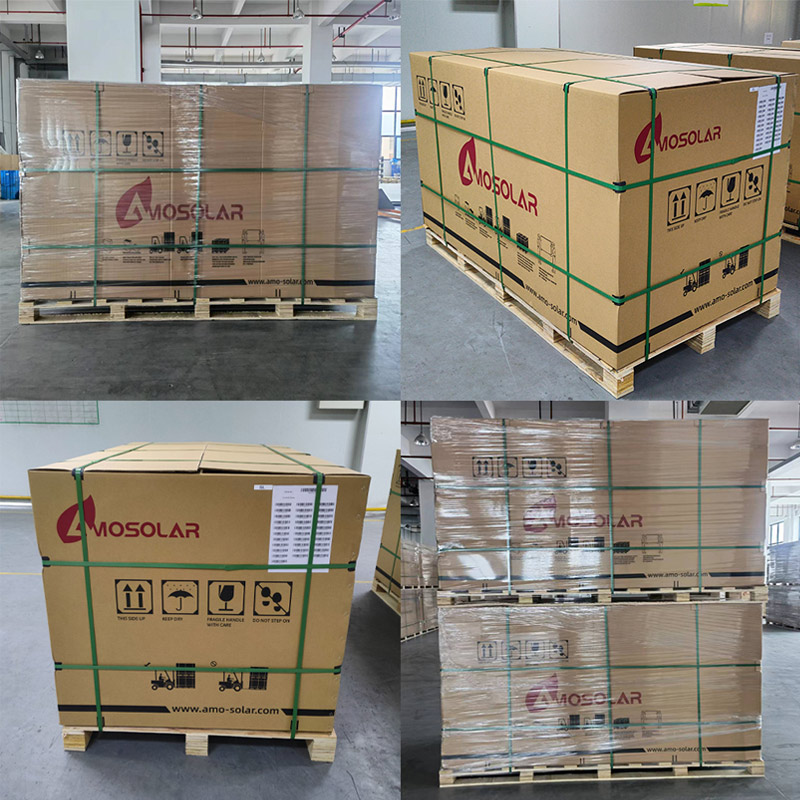

  Packaging:              31 pcs / pallet

                                   620 pcs / 40HQ container


Panel Solar 400W Perc 24V 36V 40V


· Question 1: What kind of Solar Cells we have?

Answer 1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.


· Question 2: What is the lead time?

Answer 2:Normally 15 working days after advance payment.


· Question 3: What is your monthly capacity?

Answer 3:Monthly capacity is about 200MW.


· Question 4:What is the warranty period, how many years?

Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.


· Question 5: How is your technical support?

Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
