435W 440W 445W 450W 455W Bifacial Double Glass Half Cells Mono A Level Solar Panel Chinese Supplier
Products
Home / SOLAR PANEL / AMO M6 Cells Serial /

435W 440W 445W 450W 455W Bifacial Double Glass Half Cells Mono A Level Solar Panel Chinese Supplier

Solar Panels Wholesale China
Solar Panels Wholesale China
Solar Panels Wholesale China
Solar Panels Wholesale China

435W 440W 445W 450W 455W Bifacial Double Glass Half Cells Mono A Level Solar Panel Chinese Supplier

AS435-455M6-144


Cell Mono
Rated Maximum Power
455W
Maximum Efficiency 20.93%
Junction Box IP 68
Maximum System Voltage 1000V/1500V DC
Operating Temperature -40℃ ~ +85℃
Connectors MC4 EVO2/QC4.10-35

435W-455W Bifacial Double Glass Half Cells Mono Solar Panel Chinese Supplier : With multi-busbar PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance.

Mono Solar Panel 445W



Electrical Performance Parameters (STC Test)


Model
AS435M6-144B
AS440M6-144B AS445M6-144B
AS450M6-144B
AS455M6-144B
Rated Maximum Power at STC 435W 440W
445W 450W 455W
Open Circuit Voltage (Voc) 48.96 49.16 49.36 49.56 49.76
Maximum Power Voltage (Vmp) 40.81 41.01 41.21 41.40 41.59
Short Circuit Current (Isc) 11.35 11.42 11.49 11.56 11.63
Maximum Power Current (Imp) 10.66 10.73 10.80 10.87 10.94
PV Module Efficiency (%) 20.01 20.24 20.47 20.70 20.93
Standard
Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5

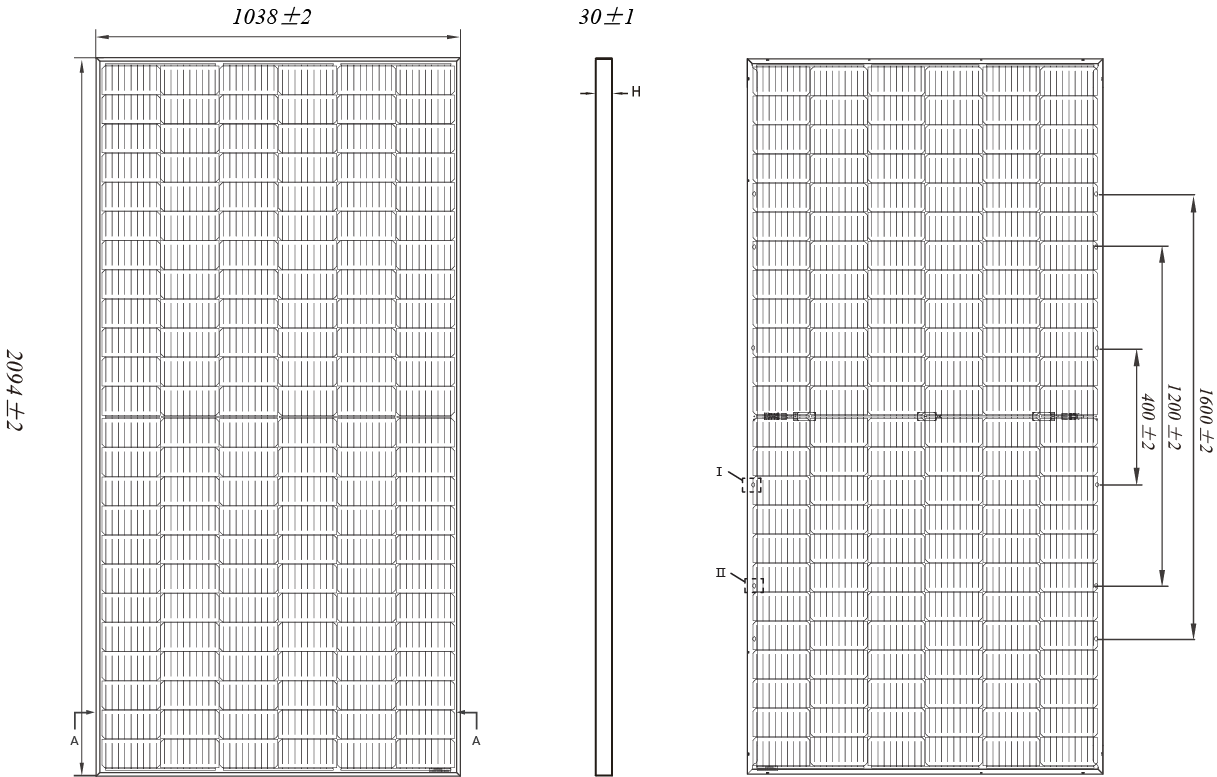

Mechanical Parameters


500 Watt Solar Panels Mono

  Layout :                  144( 6 × 24 )


  Junction Box :        Split junction box, IP68, 3 diodes

  Weight:                   28.1KG


  Cable Length :        300mm (+) / 300mm(-)

  Cable  Size :            4mm²(IEC)


  PV Size:                  2094x1038×35mm

  Packaging:              35 pcs / pallet

                                   770 pcs / 40HQ container


Paneles Solares Monocristalinos 450 W


· Question 1: What kind of Solar Cells we have?

Answer 1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.


· Question 2: What is the lead time?

Answer 2:Normally 15 working days after advance payment.


· Question 3: What is your monthly capacity?

Answer 3:Monthly capacity is about 200MW.


· Question 4:What is the warranty period, how many years?

Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.


· Question 5: How is your technical support?

Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
