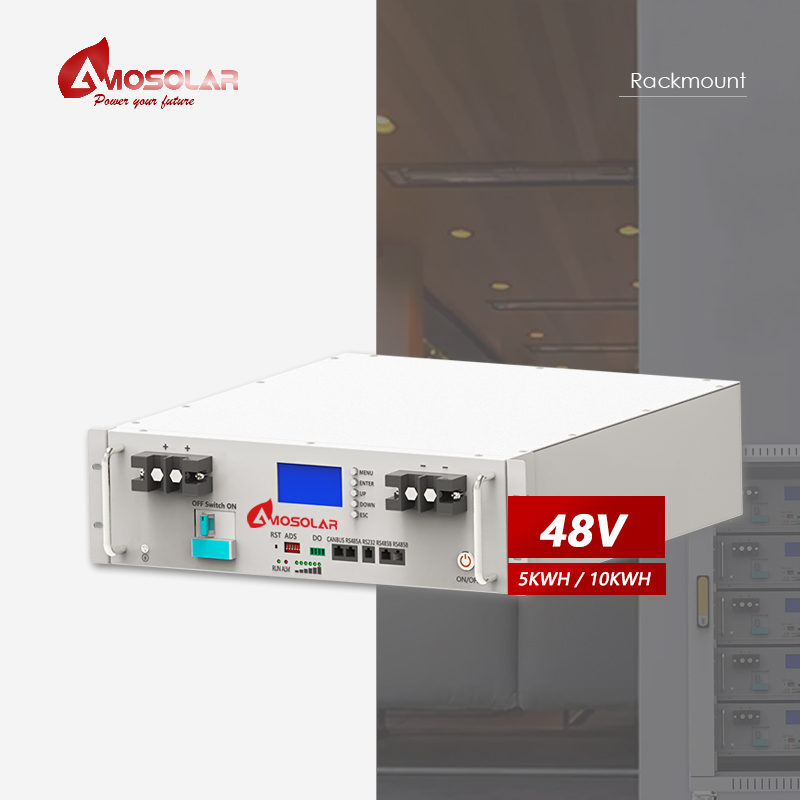

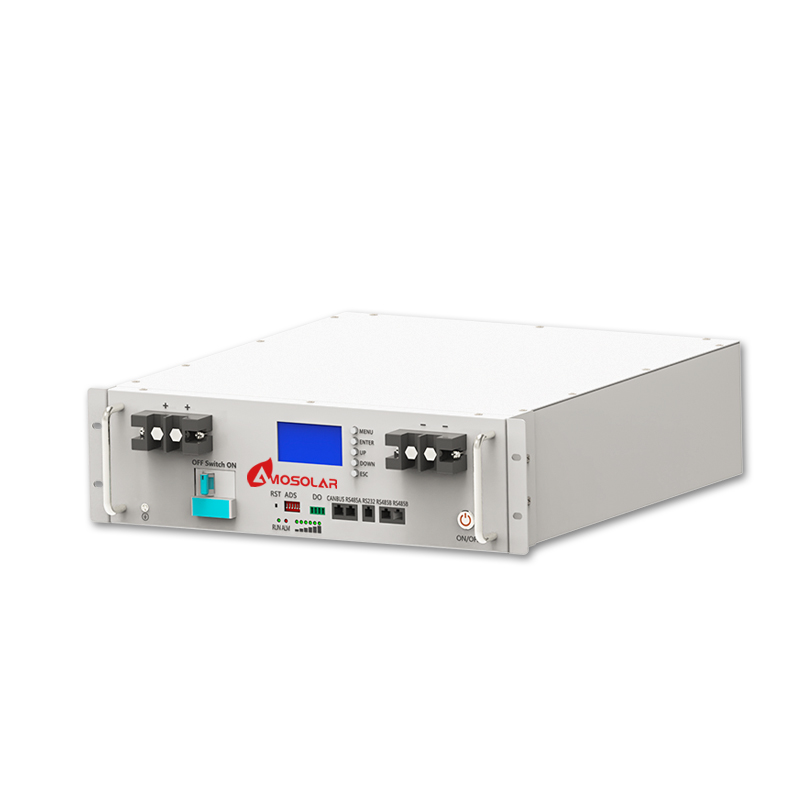

AS48-RM-100/200
Amosolar lithium battery:6000 Cycles, 20 Years design life,TUV CE EN62619 IEC 62040 UN38.3 CEC,Built-in BMS.
|
Model Number |
AS48-RM-100/200 |
|
Capacity(Ah)
|
100/200 |
|
Nominal Voltage
|
48V |
|
Weight( Approx) (KG)
|
45kg
|
|
Dimension(W/D/H)(mm)
|
560*530*240 mm
|
| Battery Type | LiFePo4(LFP) |
| Cycle Life | 6000 Cycles |
48V 100AH 200AH Lifepo4 Battery Lithium Ion Battery
LiFePO4 Solar Battery pack is built-in high quality BMS battery management system, which can manage and monitor cells information ,including voltage, current and temperature etc. Also, our BMS can balance cells charging and discharging to extend cycle life. Multiple batteries can connected in parallel to expand capacity and power in parallel for larger capacity and longer power.
| PERFORMANCE SPECIFICATIONS | ||
| MODEL | 100AH | 200AH |
| Nominal Voltage | 48V | |
| Cell model/Configuration | 3.2V 100Ah(ANC)/15S1P | 3.2V 200Ah(ANC)/15S2P |
| Capacity(Ah) | 100AH | 200AH |
| Rated Energy (KWH) | 4.8KWH | 9.6KWH |
| Usable Energy(KWH) | 4.32KWH | 8.64KWH |
| Max.Charge/Discharge Current(A) | 50A/100A | |
| Voltage Range (Vdc) | 42-54V | |

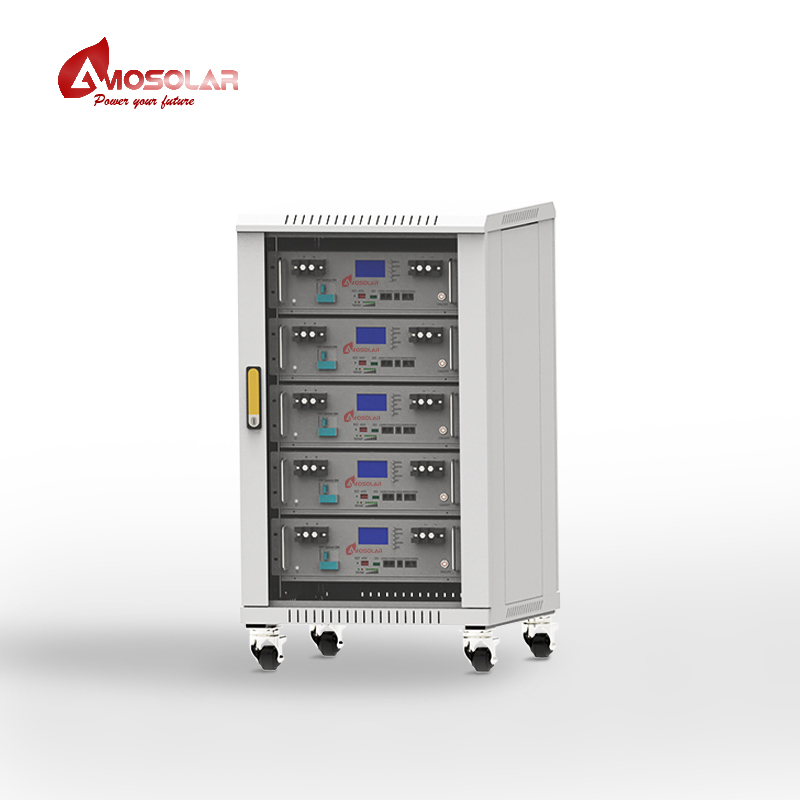

| Scalability | Up to 10 parallel | |
| Communication | RS232-PC,RS485(B)-BATRS485(A)-Inverter,Canbus-Inverter | |
| Cycle Life | ≥6000cycles@25℃，90%DOD，60%EOL | |
| Design Life | ≥10 Years (25℃) | |
| MECHANICAL SPECIFICATIONS | ||
| Weight( Approx) (KG) | 48kg | 78kg |
| Dimension(W/D/H)(mm) | 483*480*133mm | |
| lnstallation Mode | Stack | |
| lPGrade | lP21 | |
| SECURITY AND CERTIFICATION | ||
| Safety(Pack) | UN38.3,MSDS | |
| Safety(Cell) | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 | |
| Protection | BMS, Breaker | |
| ENVIRONMENTAL SPECIFICATIONS | ||
| Operating Temperature(C) | Charge:-10°C~50℃; Discharge: -20°C-50°℃ | |
| Altitude (m) | ≤2000 | |
| Humidity | ≤95%(Non-condensing) | |
