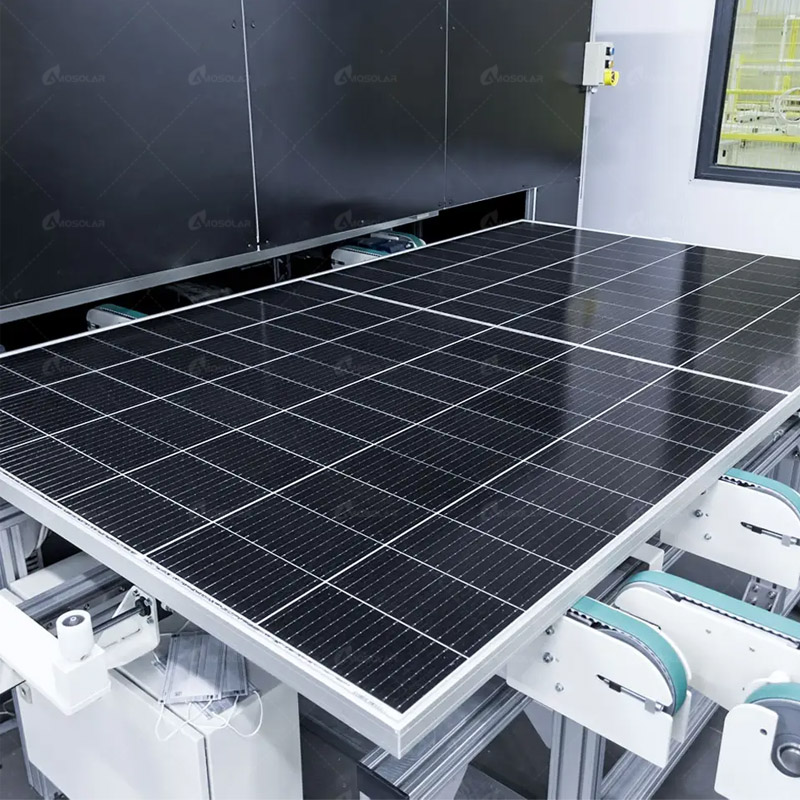

585W 590W 595W 600W 605W Bifacial Double Glass Half Cells Mono Solar Panel China Factory
Products
Home / SOLAR PANEL / AMO G12 Cells Serial /

585W 590W 595W 600W 605W Bifacial Double Glass Half Cells Mono Solar Panel China Factory

600 Watt Solar Panel
600 Watt Solar Panel
600 Watt Solar Panel
600 Watt Solar Panel
600 Watt Solar Panel

585W 590W 595W 600W 605W Bifacial Double Glass Half Cells Mono Solar Panel China Factory

AS585-605G12-120B

Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price.

Cell Mono
Rated Maximum Power
605W
Maximum Efficiency 21.40%
Weight
35.3kgs±3%
Cells Type
Mono 210x105mm
Dimension(LxWxT)
2172±2mmx1303±2mmx35±1mm
Packaging
31pcs/pallet, 558pcs/40HQ container

585W-605W Bifacial Double Glass Half Cells Mono Solar Panel China Factory : 120 half cut solar cell MBB A grade PV Modules from Chinese manufactory.

Monocrystalline Solar Panel 500W



Electrical Performance Parameters (STC Test)


Model
AS585G12-120B AS590G12-120B
AS595G12-120B
AS600G12-120B
AS605G12-120B
Rated Maximum Power at STC 585W
590W 595W 600W 605W
Open Circuit Voltage (Voc) 40.90 41.10 41.30 41.50 41.70
Maximum Power Voltage (Vmp) 33.80 34.00 34.20 34.40 34.60
Short Circuit Current (Isc) 18.37 18.42 18.47 18.52 18.57
Maximum Power Current (Imp) 17.31 17.35 17.40 17.44 17.49
PV Module Efficiency (%) 20.70 20.90 21.00 21.20 21.40
Standard Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5


Mechanical Parameters


Solar Panel Half Cut

  Layout :                  120( 6 × 20 )


  Junction Box :        Split junction box, IP68, 3 diodes

  Weight:                   35.3KG


  Cable Length :        300mm (+) / 300mm(-)

  Cable  Size :            4mm²(IEC)


  PV Size:                   2172×1303×35mm

  Packaging:              31 pcs / pallet

                                   558 pcs / 40HQ container
