365w 370w 375w 380w 385w 390w All Black Half Cut Mono PV Panel Chinese Manufactory

AS365-390BM6-120


Cell Mono
Rated Maximum Power
390W
Maximum Efficiency 21.38%
Junction Box IP 67
Maximum System Voltage 1000V/1500V DC
Operating Temperature -40℃ ~ +85℃
Connectors MC4 EVO2/QC4.10-35

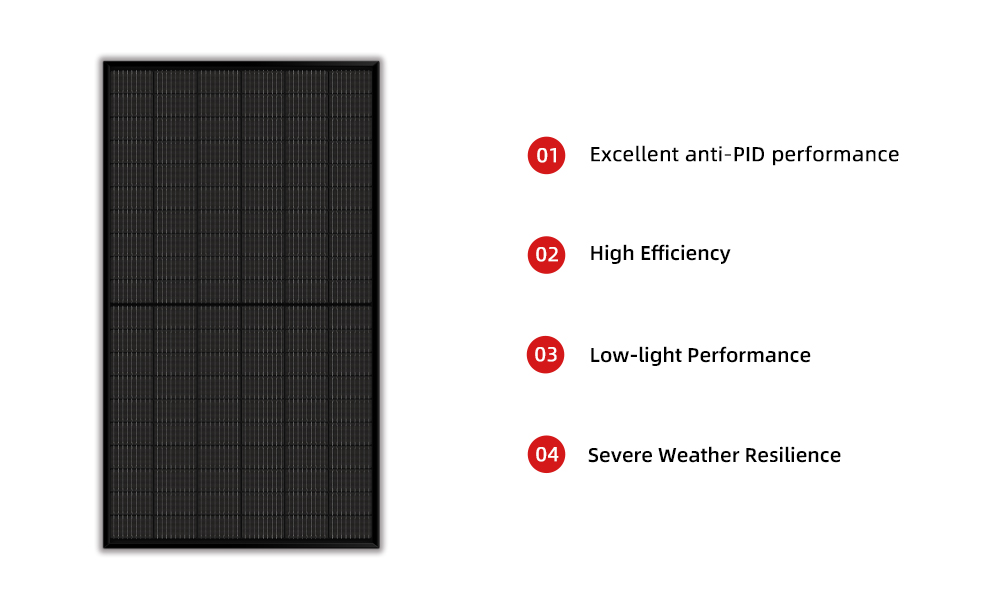

365W-390W Half Cut Mono PV Panel Chinese Factory : With multi-busbar PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance.

500W Half Cell Mono PV Module



Electrical Performance Parameters (STC Test)


Model
AS365BM6-120
AS370BM6-120
AS375BM6-120
AS380BM6-120
AS385BM6-120
AS390BM6-120
Rated Maximum Power at STC 365W
370W 375W 380W 385W 390W
Open Circuit Voltage (Voc)  41.13 41.30 41.45 41.62 41.78 41.94
Maximum Power Voltage (Vmp) 33.96 34.23 34.50 34.77 35.04 35.33
Short Circuit Current (Isc) 11.30 11.35 11.41 11.47 11.53 11.58
Maximum Power Current (Imp) 10.75 10.81 10.87 10.93 10.99 11.04
PV Module Efficiency (%) 20.00 20.28 20.55 20.83 21.10 21.38
Standard Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5


Mechanical Parameters


535 Watt Solar Panel

  Layout :                  120( 6 × 20 )


  Junction Box :        Split junction box, IP67, 3 diodes

  Weight:                   20.5KG


  Cable Length :        300mm (+) / 300mm(-)

  Cable  Size :            4mm²(IEC)


  PV Size:                   1756×1039×35mm

  Packaging:              31 pcs / pallet

                                   858 pcs / 40HQ container


600W Mono Solar Panel


· Question 1: What kind of Solar Cells we have?

Answer 1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.


· Question 2: What is the lead time?

Answer 2:Normally 15 working days after advance payment.


· Question 3: What is your monthly capacity?

Answer 3:Monthly capacity is about 200MW.


· Question 4:What is the warranty period, how many years?

Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.


· Question 5: How is your technical support?

Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
