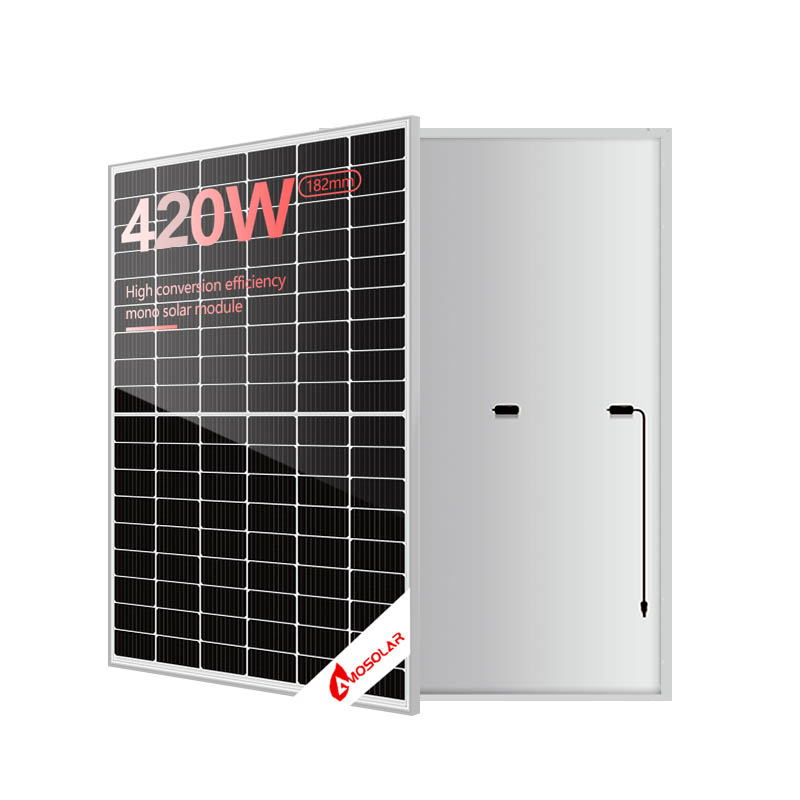

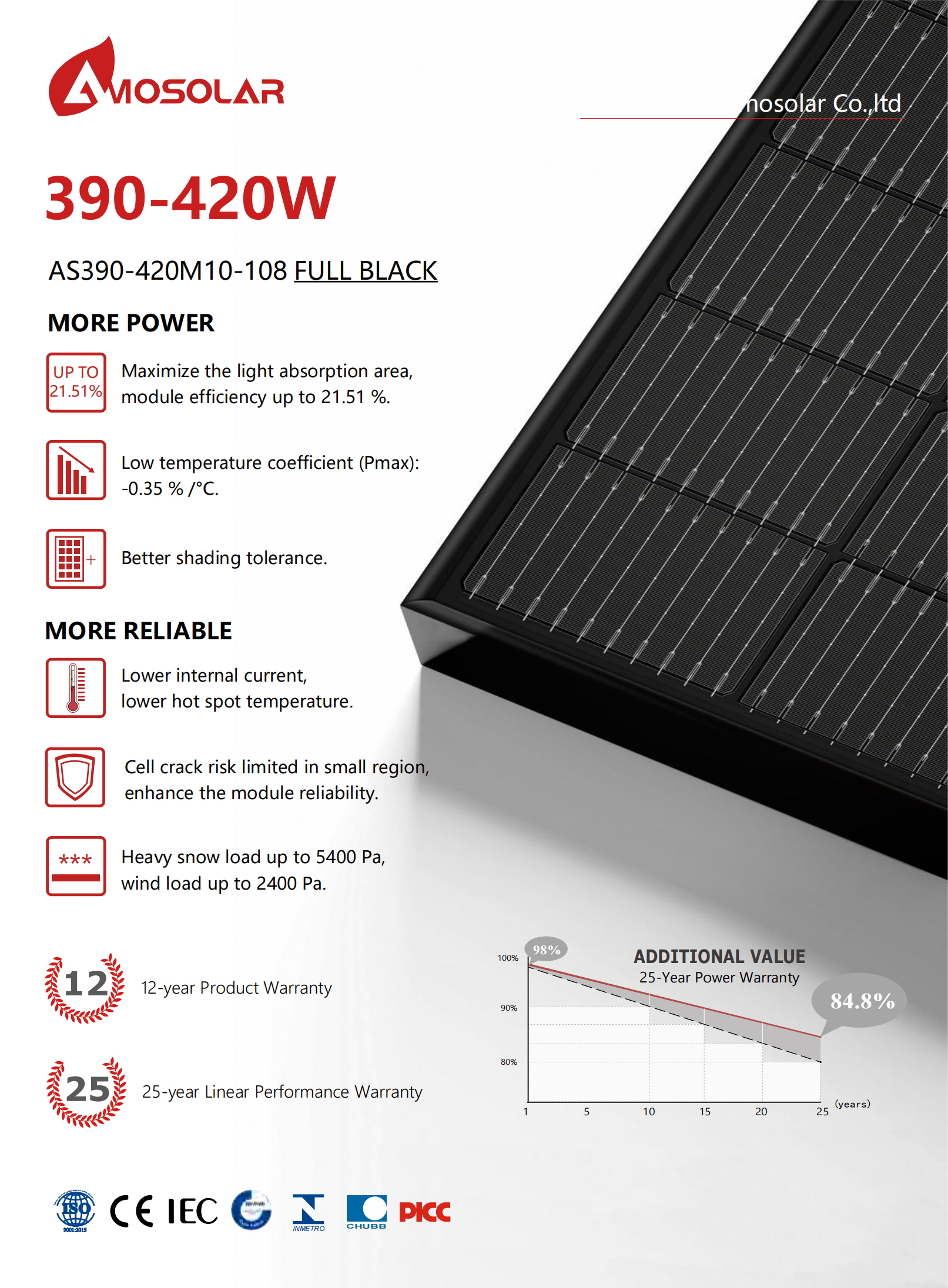

AS390-420M10-108
Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price.
| Cell | Mono |
|
Rated Maximum Power |
420W |
| Maximum Efficiency | 21.51% |
|
Weight
|
21.0kgs±3%
|
|
Cells Type
|
Mono 182x91mm
|
|
Dimension(LxWxT)
|
1722±2mmx1134±2mmx30±1mm
|
|
Packaging
|
36pcs/pallet, 936pcs/40HQ container
|
390W-420W Half Cells Mono Solar Panel China Factory : With latest multi-busbar PERC technology, 182mm half-cell solar panels with bigger power, higher efficiency, longer life, better performance.
Electrical Performance Parameters (STC Test)
|
Model |
AS380M10-108 |
AS385M10-108 |
AS390M10-108 |
AS395M10-108 |
AS400M10-108 |
AS405M10-108 |
AS410M10-108 |
| Rated Maximum Power at STC |
380W |
385W | 390W | 395W | 400W | 405W |
410W |
| Open Circuit Voltage (Voc) | 38.69 | 38.81 | 38.93 | 39.05 | 39.17 | 39.29 | 39.41 |
| Maximum Power Voltage (Vmp) | 30.65 | 30.85 | 31.05 | 31.25 | 31.45 | 31.65 | 31.85 |
| Short Circuit Current (Isc) | 13.17 | 13.23 | 13.29 | 13.35 | 13.41 | 13.47 | 13.53 |
| Maximum Power Current (Imp) | 12.74 | 12.83 | 12.90 | 12.97 | 13.04 | 13.12 | 13.19 |
| PV Module Efficiency (%) | 19.97 | 20.23 | 20.48 | 20.74 | 21.00 | 21.25 | 21.51 |
| Standard |
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5 |
||||||
Mechanical Parameters
Layout : 108( 6 × 18 ）
Weight: 21.0KG
Cable Size : 4mm²（IEC)
Packaging: 36 pcs / pallet
936 pcs / 40HQ container
AS440-465M10-120 Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price. Cell Mono Rated Maximum Power 465W Maximum Efficiency 21.47% Weight 23.0kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 1910±2mmx1134±2mmx30/35±1mm Packaging 36pcs/pallet, 864pcs/40HQ container
Learn More
AS485-505M10-132 Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price. Cell Mono Rated Maximum Power 515W Maximum Efficiency 21.69% Weight 24.5kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2094±2mmx1134±2mmx35±1mm Packaging 31pcs/pallet, 682pcs/40HQ container
Learn More
AS530-560M10-144 Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price. Cell Mono Rated Maximum Power 560W Maximum Efficiency 21.67% Weight 28.6kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2279±2mmx1134±2mmx35±1mm Packaging 31pcs/pallet, 620pcs/40HQ container
Learn More
AS100M6-32 Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price. Cell Mono Rated Maximum Power 100W Maximum Efficiency 18.16% Junction Box IP 67 Maximum System Voltage 1000VDC Weight 5.3kg Solar Cells Mono crystalline 166X83mm (4X8pcs)
Learn More
AS270-295P-60 Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price. Cell Poly Rated Maximum Power 295W Maximum Efficiency 18.13% Weight 17.0kgs±3% Cells Type Poly-crystalline 156.75x156.75mm Dimension (LxW×T) 1640±2mmx992±2mmx30±1mm Packaging 36pcs/pallet,1078pcs/40HQ container
Learn More
AS48100/AS48200 Amosolar lithium battery:6000 Cycles, 10 Years+ design life,TUV CE EN62619 IEC 62040 UN38.3 CEC,Built-in BMS. Model Number AS48100/AS48200 Capacity(Ah) 100/200 Nominal Voltage 48V Weight( Approx) (KG) 43.2kg/76.8kg Dimension(W/D/H)(mm) 480*483*178mm/680*483*178mm Battery Type LiFePo4(LFP) Cycle Life 6000 Cycles
Learn More
Amosolar 10KW 11KW 12KW Hybrid Solar System Name Hybrid 10KW System Warranty 25 Years Output Power Guarantee Certificate TUV/IEC/CEC/CE/ISO/Inmetro Application Home/Business Output Voltage EU:220/230/240V ; 380/400V Monitoring Wifi/GPRS Mounting Brackets Roof/Ground installation
Learn More
AS48-RM-100/200 Amosolar lithium battery:6000 Cycles, 20 Years design life,TUV CE EN62619 IEC 62040 UN38.3 CEC,Built-in BMS. Model Number AS51-RM-100/200 Capacity(Ah) 100/200 Nominal Voltage 51.2V Weight( Approx) (KG) 45.1kg/81.6kg Dimension(W/D/H)(mm) 480*483*178mm/680*483*178mm Battery Type LiFePo4(LFP) Cycle Life 6000 Cycles
Learn More
