6-GFM(G)-100Ah
Amosolar lead acid battery:Better operations across temperature extremes，Slower discharging for a longer lifespan
|
Model Number |
6-GFM(G)-100Ah |
| Capacity(Ah) | 100 |
| Nominal Voltage | 12V |
|

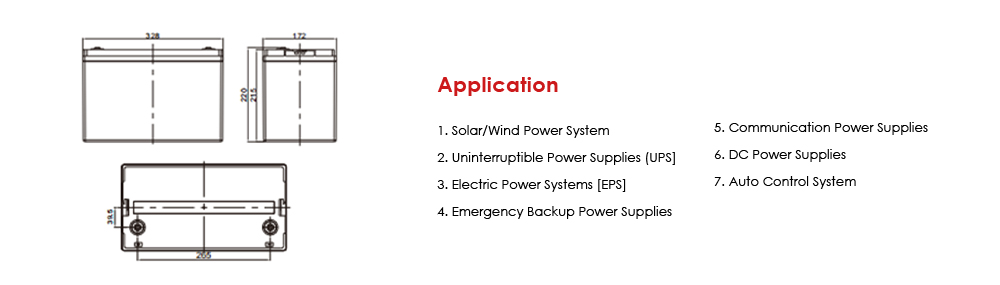

Size(L×W×H×TH)
|
330×172×219×230 mm
|
|
Battery Type |
GEL |
|
Cycle Life |
1500times |

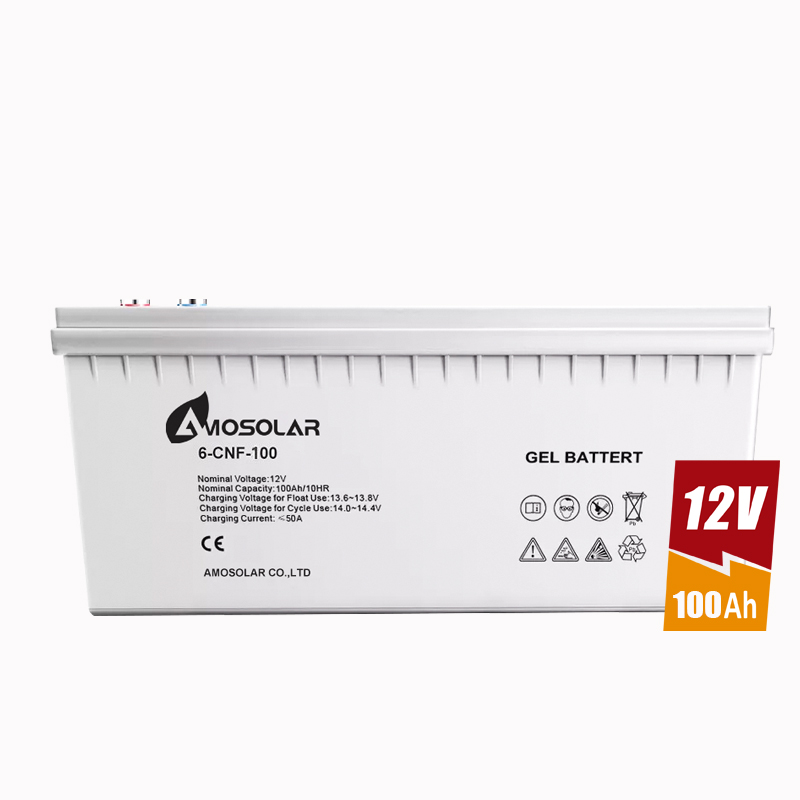

12V 100AH Lead Acid Gel Battery
Offers more cyclic life than standby series. It is suitable for solar energy systems, marine and RV etc.
Model
6-GFM(G)-100Ah
6-GFM(G)-150Ah
6-GFM(G)-200Ah
6-GFM(G)-250Ah
Cells Per Unit
6
Voltage Per Unit
12V
Capacity
100Ah@10hr-rate to 1.80V per cell @25°C
150Ah@10hr-rate to 1.80V per cell @25°C
200Ah@10hr-rate to 1.80V per cell @25°C
250Ah@10hr-rate to 1.80V per cell @25°C
Internal Resistance
Approx. 7.5mΩ
Approx. 4mΩ
Approx. 3.5mΩ
Approx. 2.5mΩ
Terminal
F1/F2
Max. Discharge Current
1000A(5s)
2250A(5s)
3000A(5s)
3750A(5s)
Design Life
10~15 years
Maximum Charging Current
20A
37.5A
50A
62.5A
Float Charging Voltage
13.6 V~13.8 V @ 25°C Temperature, Compensation: -20mV/°C/Cell
Cycle Use Voltage
14.5 V~14.9 V @ 25°C, Cycle Use Voltage, Temperature Compensation: -30mV/°C/Cell
Operating Temperature Range
Discharge: -20°C~60°C, Charge: 0°C~50°C , Storage: -20°C~60°C
Container Material
A.B.S. UL94-HB, UL94-V0 Optional.
Normal Operating Temperature Range
25°C±5°C
Self Discharge
Less than 3% at 25°C per month
Container Material
A.B.S. UL94-HB, UL94-V0 Optional
