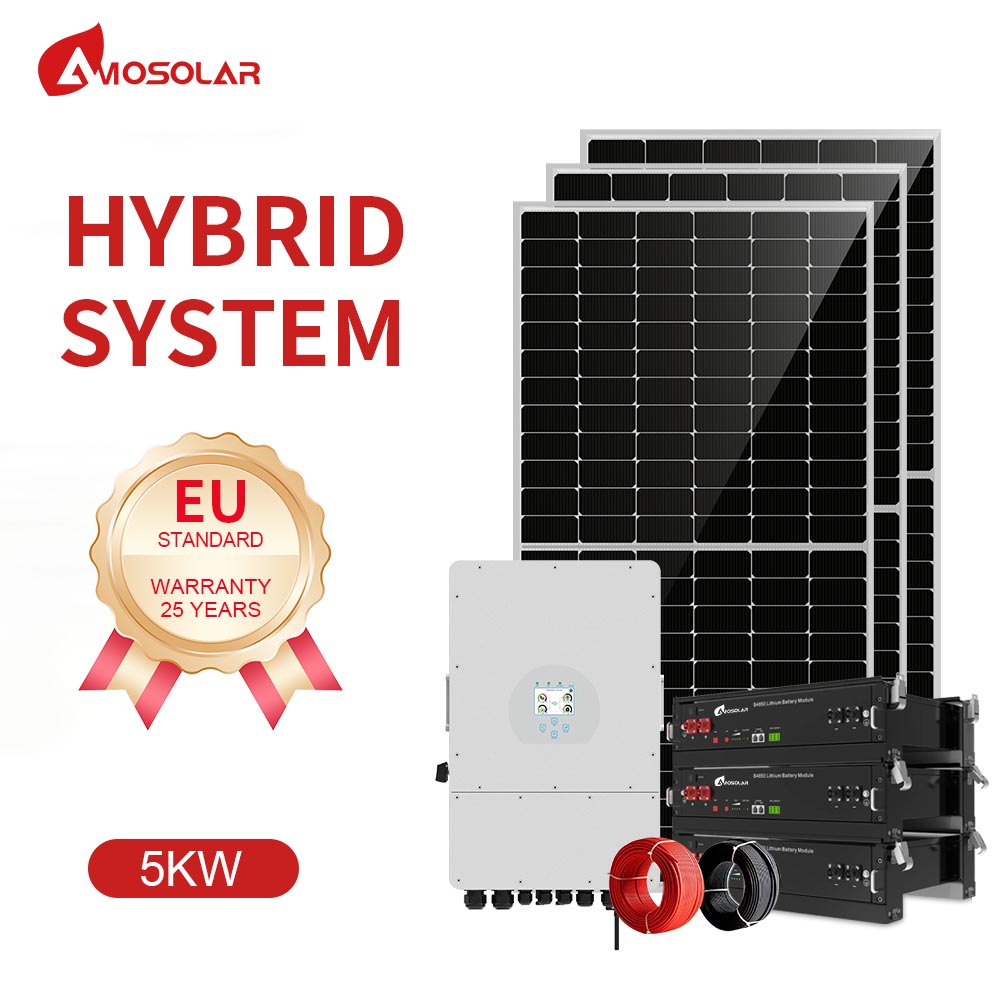

Amosolar 3KW 5KW 6KW Hybrid Solar System
|
Name |
Hybrid 5KW System |
| Warranty | 25 Years Output Power Guarantee |
| Certificate | TUV/IEC/CEC/CE/ISO/Inmetro |
| Application | Home/Business |
| Output Voltage | EU:220/230/240V ; 380/400V |
| Monitoring | Wifi/GPRS |
| Mounting Brackets | Roof/Ground installation |
Electrical Performance Parameters (STC Test)
Mounting Structure
PV Cable
4mm² PV Cable
MC4
MC4 Connector
Standard Wooded Package + System Connecting Drawings (Easy Installing)
System Capacity could be adjustable according customer's situation
Mechanical Parameters

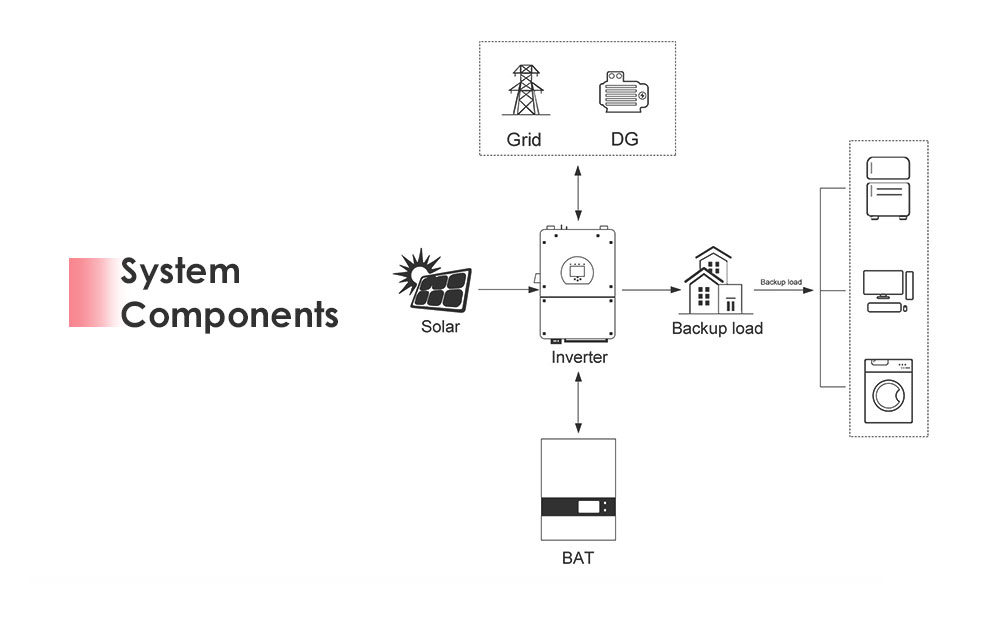

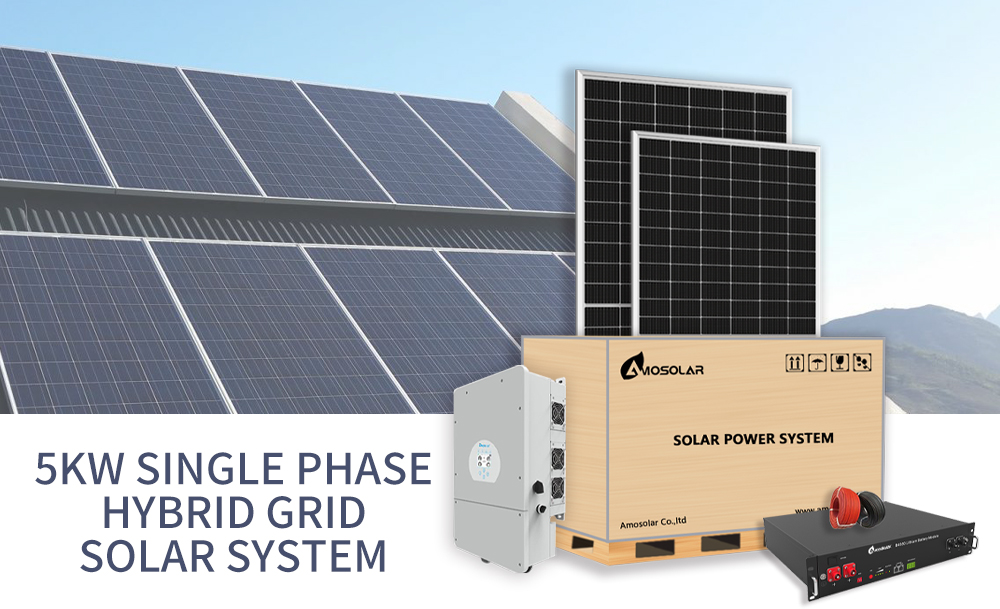

5KW Hybrid Solar System Equipment
Name
Description
Quantity
Solar Panel
Half Cell 550W
10 PCS
PV Combiner Box
0 ~ 4 input 1 output , (Switches,Breaker,SPD)
1 PCS
Inverter
5kw Hybrid Inverter
1 PCS
Battery
AGM/GEL/Lithium Battery
4~8 PCS
Roof/Ground Install (Customized)
1 Set
200~500m
20 Prs
High Efficiecy PV Module
·Higher Output Power
·Less Shading And Lower Resistive Loss
·Better Mechanical Loading
·Lower LCOE
Deye Hybrid Inverter
·SUN-8K/12K-SG04LP3, MAX 9 PCS in Parallel.
·Compatible With Different Grid Types: 230/400V, 120/208V.
·With Advance control algorithm.
·Parallel System Need Not Additional Control Device Even.
Battery Specification
·Practical Pull Ear Design Improves Operation Convenience
·Safe Lithium Iron Phosphate Battery Cell
·Compact Size Ultralight Module
·Widely Used In Energy Storage And Electrical Products.
Solar Mounting Solutions
·Good Stability 、Good Load-Bearing Capacity And Stable Structure
·Flat Surface 、Neat Incision And Assembled Installation
·Support Customization According To Needs
·Integrated Services
·Adequate Inventory
