Solar Panel Inspection: 7 Things You Should Check Before Small Problems Become Big Ones

Learn what to check during a solar panel inspection, from module color differences and glass damage to loose mounting screws, cracks and connection issues.

Once a solar PV system has been running for a while, regular inspection becomes one of the simplest ways to prevent small problems from becoming expensive repairs.

For installers, EPC contractors and solar system owners, many questions start with the same thing: What should I actually look for when inspecting a solar panel?

Does a different module color mean poor quality? Is a small glass crack dangerous? What happens if a mounting screw becomes loose?

Here are some of the most common issues worth checking during a solar panel inspection.

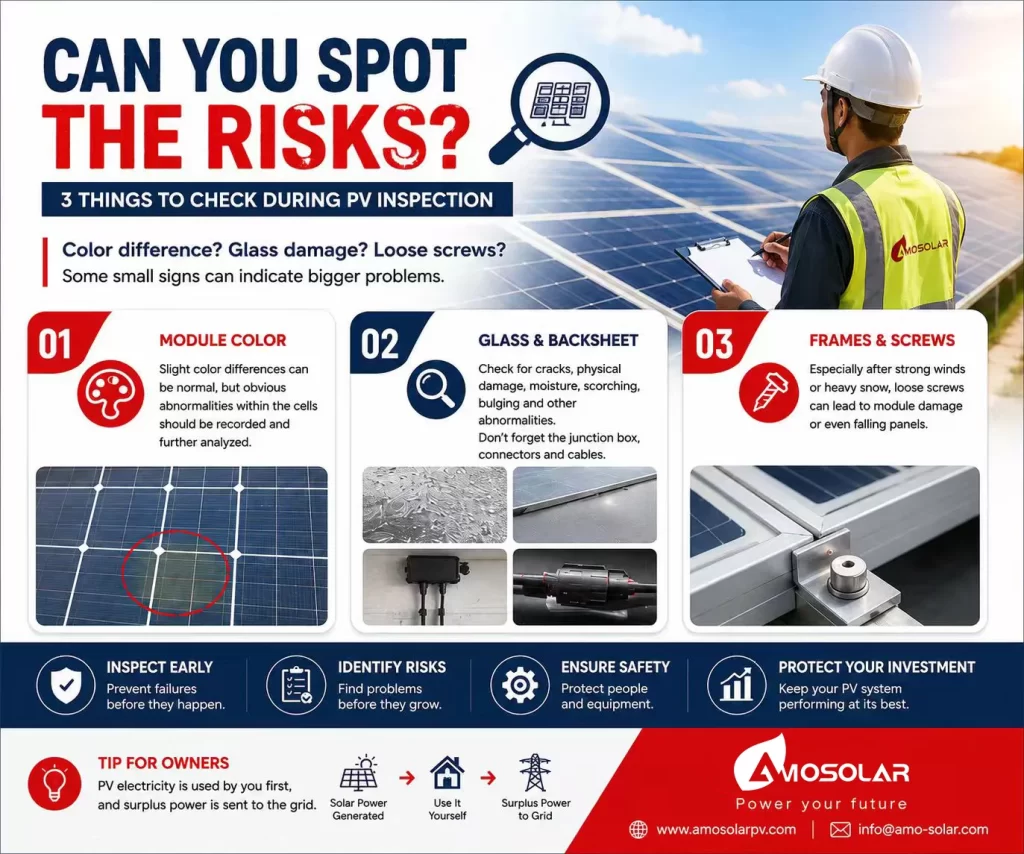

1. Does a Different Solar Panel Color Mean a Quality Problem?

Not necessarily.

Modern PV modules use advanced anti-reflective coatings to improve light transmission and energy performance. Because these coatings interact differently with light depending on the viewing angle, slight color differences can sometimes be seen on the surface of a solar panel.

This does not automatically indicate a defective module.

However, if you notice a clear and unusual color difference inside the solar cells, especially when it is concentrated in a particular area, it is worth taking photos and recording the location for further technical inspection.

The key is to distinguish between normal optical differences and genuine cell abnormalities.

2. What Should You Check on the Glass?

The glass is one of the first things to inspect because it is directly exposed to the outdoor environment.

Look for:

• Cracks or visible physical damage
• Scratches or impact marks
• Dirt or foreign objects
• Long-term shading
• Problems around the glass and frame sealing

A small amount of surface dirt may simply reduce energy production, while physical damage can potentially affect the long-term reliability of the solar module.

For large commercial or utility-scale solar projects, regular visual inspection can help identify problems before they affect a larger number of modules.

3. Don’t Forget the Backsheet and Junction Box

The rear side of a PV module deserves just as much attention as the front.

During inspection, check for signs such as:

• Burning or discoloration
• Bulging
• Cracks
• Moisture or water ingress
• Damaged cables
• Loose connectors
• Corrosion around electrical connections

The junction box, connectors and cables should be firmly connected and free from obvious damage.

If serious abnormalities are found, the module should be handled according to the manufacturer’s maintenance and safety procedures rather than simply continuing to operate it.

4. Are Loose Mounting Screws Really a Big Deal?

Yes.

A loose screw may look like a small mechanical issue, but the consequences can become much bigger during strong wind, heavy snow or severe weather.

The mounting structure keeps the solar panels securely fixed to the installation site. If fastening points become loose, the module may experience excessive movement or mechanical stress, potentially increasing the risk of damage.

That’s why checking the solar panel mounting system, frame and fasteners should be part of routine PV maintenance—especially after extreme weather.

5. What About Microcracks?

Microcracks are difficult to identify through a simple visual inspection, but they are worth paying attention to when a module has experienced strong mechanical stress or impact.

Possible causes include:

• Transportation damage
• Improper handling
• Installation stress
• Heavy snow
• Strong wind
• Impact from external objects

For larger solar installations, technologies such as EL testing and electrical performance testing can provide a more detailed assessment when a problem is suspected.

This is one reason choosing reliable solar panels from an experienced manufacturer matters from the beginning.

6. Don’t Only Look at the Solar Panel—Look at the System

A good inspection shouldn’t stop at the module itself.

For a complete solar PV system, operators should also pay attention to:

Solar panels → mounting structure → cables → connectors → inverter → battery/energy storage system

A module may look perfectly normal while a loose connector or damaged cable creates a completely different problem.

For hybrid and off-grid systems, the condition of the solar battery, inverter and energy storage system should also be considered as part of overall system maintenance.

7. Regular Inspection Helps Protect Long-Term Solar Investment

A solar system is designed to operate for many years. Regular inspection is therefore not just about finding defects—it is about protecting the system’s energy yield, safety and long-term return on investment.

For residential installations, a basic visual check can help identify obvious problems.

For commercial and utility-scale projects, a more structured solar panel maintenance and inspection program is recommended, particularly after extreme weather events.

Choosing Reliable Solar Panels Starts Before Installation

Good maintenance is important, but the quality of the components installed from day one matters just as much.

Amosolar supplies high-efficiency solar panels, N-Type TOPCon solar panels, bifacial solar panels and other PV modules for residential, commercial and utility-scale applications.

Whether you are looking for solar panels for a new project, replacing existing modules or planning a larger PV installation, choosing the right module can make maintenance and long-term operation much easier.

Have a solar project in mind? Contact Amosolar for solar panel recommendations, product specifications and a customized solution for your project.
